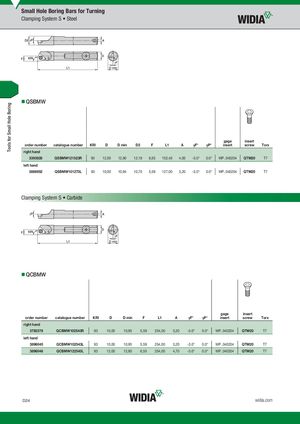

- QSBMW
gage insert
| order number | catalogue number | KRI | D | D min | D2 | F | L1 | A | aF° | aP° | insert | screw | Torx | ||
| right hand | |||||||||||||||
| 3393828 | QSBMW121523R | 93 | 12,00 | 12,90 | 12,19 | 6,55 | 152,40 | 4,00 | -3.0° | 0.0° | WP..040204 | QTM20 | T7 | ||
| left hand | |||||||||||||||
| 3886952 | QSBMW101273L | 93 | 10,00 | 10,94 | 10,70 | 5,59 | 127,00 | 3,20 | -3.0° | 0.0° | WP..040204 | QTM20 | T7 |
Clamping System S • Carbide
- QCBMW
gage insert
| order number | catalogue number | KRI | D | D min | F | L1 | A | aF° | aP° | insert screw | Torx | ||
| right hand | |||||||||||||
| 3782378 | QCBMW102543R | 93 | 10,00 | 10,95 | 5,59 | 254,00 | 3,20 | -3.0° | 0.0° | WP..040204 | QTM20 | T7 | |
| left hand | |||||||||||||
| 3896045 | QCBMW102543L | 93 | 10,00 | 10,95 | 5,59 | 254,00 | 3,20 | -3.0° | 0.0° | WP..040204 | QTM20 | T7 | |
| 3896046 | QCBMW122543L | 93 | 12,00 | 12,90 | 6,55 | 254,00 | 4,70 | -3.0° | 0.0° | WP..040204 | QTM20 | T7 |
