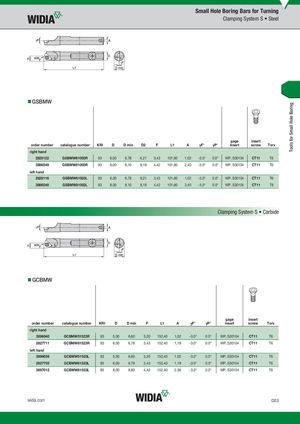

Общий каталог Widia 2017 - страница 393
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- GSBMW
| order number | catalogue number | KRI | D | D min | D2 | F | L1 | A | �F° | �P° | gage insert | insert screw | Torx |
| right hand | |||||||||||||
| 2828122 | GSBMW61003R | 93 | 6,00 | 6,78 | 6,21 | 3,43 | 101,60 | 1,02 | -3.0° | 0.0° | WP..S30104 | CT11 | T6 |
| 3886549 | GSBMW81003R | 93 | 8,00 | 8,10 | 8,18 | 4,42 | 101,60 | 2,40 | -3.0° | 0.0° | WP..S30104 | CT11 | T6 |
| left hand | |||||||||||||
| 2828116 | GSBMW61003L | 93 | 6,00 | 6,78 | 6,21 | 3,43 | 101,60 | 1,02 | -3.0° | 0.0° | WP..S30104 | CT11 | T6 |
| 3886548 | GSBMW81003L | 93 | 8,00 | 8,10 | 8,18 | 4,42 | 101,60 | 2,40 | -3.0° | 0.0° | WP..S30104 | CT11 | T6 |
Clamping System S • Carbide
- GCBMW
gage insert
order number catalogue number KRI D D min F L1 A aF° aP° insert screw Torx
right hand
| order number | catalogue number | KRI | D | D min | F | L1 | A | �F° | �P° | gage insert | insert screw | Torx |
| right hand | ||||||||||||
| 3896040 | GCBMW51523R | 93 | 5,00 | 6,60 | 3,20 | 152,40 | 1,02 | -3.0° | 0.0° | WP..S30104 | CT11 | T6 |
| 2827711 | GCBMW61523R | 93 | 6,00 | 6,78 | 3,43 | 152,40 | 1,19 | -3.0° | 0.0° | WP..S30104 | CT11 | T6 |
| left hand | ||||||||||||
| 3896039 | GCBMW51523L | 93 | 5,00 | 6,60 | 3,20 | 152,40 | 1,02 | -3.0° | 0.0° | WP..S30104 | CT11 | T6 |
| 2827705 | GCBMW61523L | 93 | 6,00 | 6,78 | 3,43 | 152,40 | 1,19 | -3.0° | 0.0° | WP..S30104 | CT11 | T6 |
| 3897012 | GCBMW81523L | 93 | 8,00 | 8,80 | 4,42 | 152,40 | 2,36 | -3.0° | 0.0° | WP..S30104 | CT11 | T6 |
