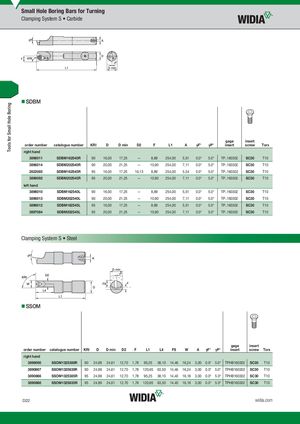

- SDBM
| order number | catalogue number | KRI | D | D min | D2 | F | L1 | A | �F° | �P° | gage insert | insert screw | Torx |
| right hand | |||||||||||||
| 3896011 | SDBM162540R | 90 | 16,00 | 17,25 | — | 8,89 | 254,00 | 5,51 | 0.0° | 5.0° | TP..160302 | SC30 | T10 |
| 3896014 | SDBM202540R | 90 | 20,00 | 21,25 | — | 10,90 | 254,00 | 7,11 | 0.0° | 5.0° | TP..160302 | SC30 | T10 |
| 2822085 | SDBM162545R | 95 | 16,00 | 17,25 | 16,13 | 8,89 | 254,00 | 5,54 | 0.0° | 5.0° | TP..160302 | SC30 | T10 |
| 3896092 | SDBM202545R | 95 | 20,00 | 21,25 | — | 10,90 | 254,00 | 7,11 | 0.0° | 5.0° | TP..160302 | SC30 | T10 |
| left hand | |||||||||||||
| 3896010 | SDBM162540L | 90 | 16,00 | 17,25 | — | 8,89 | 254,00 | 5,51 | 0.0° | 5.0° | TP..160302 | SC30 | T10 |
| 3896013 | SDBM202540L | 90 | 20,00 | 21,25 | — | 10,90 | 254,00 | 7,11 | 0.0° | 5.0° | TP..160302 | SC30 | T10 |
| 3896012 | SDBM162545L | 95 | 16,00 | 17,25 | — | 8,89 | 254,00 | 5,51 | 0.0° | 5.0° | TP..160302 | SC30 | T10 |
| 3897084 | SDBM202545L | 95 | 20,00 | 21,25 | — | 10,90 | 254,00 | 7,11 | 0.0° | 5.0° | TP..160302 | SC30 | T10 |
Clamping System S • Steel
- SSOM
gage insert
| order number | catalogue number | KRI | D | D min | D2 | F | L1 | L4 | FS | W | A | aF° | aP° | insert screw | Torx | |
| right hand | ||||||||||||||||
| 3896090 | SSOM1325380R | 90 | 24,99 | 24,61 | 12,70 | 1,78 | 95,25 | 38,10 | 14,46 | 16,24 | 3,00 | 0.0° | 5.0° | TPHB160302 | SC30 | T10 |
| 3890867 | SSOM1325630R | 90 | 24,99 | 24,61 | 12,70 | 1,78 | 120,65 | 63,50 | 14,46 | 16,24 | 3,00 | 0.0° | 5.0° | TPHB160302 | SC30 | T10 |
| 3890866 | SSOM1325385R | 95 | 24,99 | 24,61 | 12,70 | 1,78 | 95,25 | 38,10 | 14,40 | 16,18 | 3,00 | 0.0° | 5.0° | TPHB160302 | SC30 | T10 |
| 3890868 | SSOM1325635R | 95 | 24,99 | 24,61 | 12,70 | 1,78 | 120,65 | 63,50 | 14,40 | 16,18 | 3,00 | 0.0° | 5.0° | TPHB160302 | SC30 | T10 |
