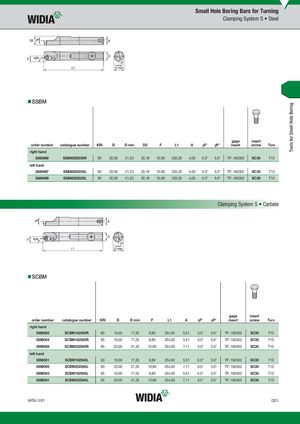

- SSBM
gage insert
| order number | catalogue number | KRI | D | D min | D2 | F | L1 | A | aF° | aP° | insert | screw | Torx | |
| right hand | ||||||||||||||
| 3886968 | SSBM202030R | 90 | 20,00 | 21,23 | 20,19 | 10,90 | 203,20 | 4,00 | 0.0° | 5.0° | TP..160302 | SC30 | T10 | |
| left hand | ||||||||||||||
| 3886967 | SSBM202030L | 90 | 20,00 | 21,23 | 20,19 | 10,90 | 203,20 | 4,00 | 0.0° | 5.0° | TP..160302 | SC30 | T10 | |
| 3886969 | SSBM202035L | 95 | 20,00 | 21,23 | 20,19 | 10,90 | 203,20 | 4,00 | 0.0° | 5.0° | TP..160302 | SC30 | T10 |
Clamping System S • Carbide
- SCBM
gage insert
| order number | catalogue number | KRI | D | D min | F | L1 | A | aF° | aP° | insert | screw | Torx | |
| right hand | |||||||||||||
| 3895892 | SCBM162540R | 90 | 16,00 | 17,25 | 8,89 | 254,00 | 5,51 | 0.0° | 5.0° | TP..160302 | SC30 | T10 | |
| 3896004 | SCBM162545R | 95 | 16,00 | 17,25 | 8,89 | 254,00 | 5,51 | 0.0° | 5.0° | TP..160302 | SC30 | T10 | |
| 3896006 | SCBM202545R | 95 | 20,00 | 21,25 | 10,90 | 254,00 | 7,11 | 0.0° | 5.0° | TP..160302 | SC30 | T10 | |
| left hand | |||||||||||||
| 3895891 | SCBM162540L | 90 | 16,00 | 17,25 | 8,89 | 254,00 | 5,51 | 0.0° | 5.0° | TP..160302 | SC30 | T10 | |
| 3896005 | SCBM202540L | 90 | 20,00 | 21,25 | 10,90 | 254,00 | 7,11 | 0.0° | 5.0° | TP..160302 | SC30 | T10 | |
| 3896003 | SCBM162545L | 95 | 16,00 | 17,25 | 8,89 | 254,00 | 5,51 | 0.0° | 5.0° | TP..160302 | SC30 | T10 | |
| 3896091 | SCBM202545L | 95 | 20,00 | 21,25 | 10,90 | 254,00 | 7,11 | 0.0° | 5.0° | TP..160302 | SC30 | T10 |
