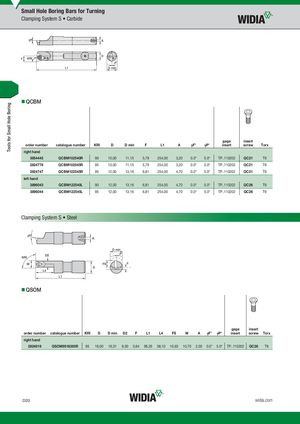

- QCBM
| order number | catalogue number | KRI | D | D min | F | L1 | A | �F° | �P° | gage insert | insert screw | Torx |
| right hand | ||||||||||||
| 3854445 | QCBM102540R | 90 | 10,00 | 11,15 | 5,79 | 254,00 | 3,20 | 0.0° | 5.0° | TP..110202 | QC21 | T9 |
| 2824776 | QCBM102545R | 95 | 10,00 | 11,15 | 5,79 | 254,00 | 3,20 | 0.0° | 5.0° | TP..110202 | QC21 | T9 |
| 2824747 | QCBM122545R | 95 | 12,00 | 13,16 | 6,81 | 254,00 | 4,70 | 0.0° | 5.0° | TP..110202 | QC21 | T9 |
| left hand | ||||||||||||
| 3896043 | QCBM122540L | 90 | 12,00 | 13,16 | 6,81 | 254,00 | 4,70 | 0.0° | 5.0° | TP..110202 | QC26 | T9 |
| 3896044 | QCBM122545L | 95 | 12,00 | 13,16 | 6,81 | 254,00 | 4,70 | 0.0° | 5.0° | TP..110202 | QC26 | T9 |
Clamping System S • Steel
- QSOM
gage insert
| order number | catalogue number | KRI | D | D min | D2 | F | L1 | L4 | FS | W | A | aF° | aP° | insert | screw | Torx | |
| right hand | |||||||||||||||||
| 2824819 | QSOM9516385R | 95 | 16,00 | 16,51 | 9,50 | 0,64 | 95,25 | 38,10 | 10,63 | 10,70 | 2,03 | 0.0° | 5.0° | TP..110202 | QC26 | T9 |
