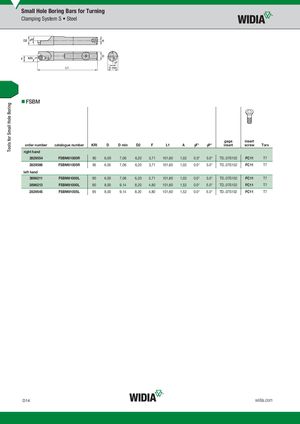

FSBM
gage insert
| order number | catalogue number | KRI | D | D min | D2 | F | L1 | A | aF° | aP° | insert screw | Torx | ||
| right hand | ||||||||||||||
| 2829554 | FSBM61000R | 90 | 6,00 | 7,06 | 6,20 | 3,71 | 101,60 | 1,02 | 0.0° | 5.0° | TD..07S102 | FC11 | T7 | |
| 2829566 | FSBM61005R | 95 | 6,00 | 7,06 | 6,20 | 3,71 | 101,60 | 1,02 | 0.0° | 5.0° | TD..07S102 | FC11 | T7 | |
| left hand | ||||||||||||||
| 3896211 | FSBM61000L | 90 | 6,00 | 7,06 | 6,20 | 3,71 | 101,60 | 1,02 | 0.0° | 5.0° | TD..07S102 | FC11 | T7 | |
| 3896213 | FSBM81000L | 90 | 8,00 | 9,14 | 8,20 | 4,80 | 101,60 | 1,52 | 0.0° | 5.0° | TD..07S102 | FC11 | T7 | |
| 2829545 | FSBM81005L | 95 | 8,00 | 9,14 | 8,20 | 4,80 | 101,60 | 1,52 | 0.0° | 5.0° | TD..07S102 | FC11 | T7 |
