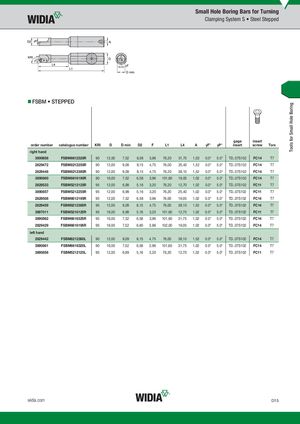

Общий каталог Widia 2017 - страница 385
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
FSBM • STEPPED
gage insert
order number catalogue number KRI D D min D2 F L1 L4 A aF° aP° insert screw Torx
right hand
| 3890858 | FSBM6612320R | 90 | 12,00 | 7,52 | 6,58 | 3,96 | 76,20 | 31,75 | 1,02 | 0.0° | 5.0° | TD..07S102 | FC14 | T7 |
| 2829472 | FSBM8212250R | 90 | 12,00 | 9,09 | 8,15 | 4,75 | 76,00 | 25,40 | 1,52 | 0.0° | 5.0° | TD..07S102 | FC14 | T7 |
| 2829448 | FSBM8212380R | 90 | 12,00 | 9,09 | 8,15 | 4,75 | 76,20 | 38,10 | 1,52 | 0.0° | 5.0° | TD..07S102 | FC14 | T7 |
| 3890860 | FSBM6616190R | 90 | 16,00 | 7,52 | 6,58 | 3,96 | 101,60 | 19,05 | 1,02 | 0.0° | 5.0° | TD..07S102 | FC14 | T7 |
| 2829533 | FSBM5212125R | 95 | 12,00 | 6,99 | 5,16 | 3,20 | 76,20 | 12,70 | 1,02 | 0.0° | 5.0° | TD..07S102 | FC11 | T7 |
| 3890857 | FSBM5212255R | 95 | 12,00 | 6,99 | 5,16 | 3,20 | 76,20 | 25,40 | 1,02 | 0.0° | 5.0° | TD..07S102 | FC11 | T7 |
| 2829508 | FSBM6612195R | 95 | 12,00 | 7,52 | 6,58 | 3,96 | 76,00 | 19,05 | 1,02 | 0.0° | 5.0° | TD..07S102 | FC14 | T7 |
| 2829459 | FSBM8212385R | 95 | 12,00 | 9,09 | 8,15 | 4,75 | 76,00 | 38,10 | 1,52 | 0.0° | 5.0° | TD..07S102 | FC14 | T7 |
| 3897011 | FSBM5216125R | 95 | 16,00 | 6,99 | 5,16 | 3,20 | 101,60 | 12,70 | 1,02 | 0.0° | 5.0° | TD..07S102 | FC11 | T7 |
| 3890862 | FSBM6616325R | 95 | 16,00 | 7,52 | 6,58 | 3,96 | 101,60 | 31,75 | 1,02 | 0.0° | 5.0° | TD..07S102 | FC14 | T7 |
| 2829429 | FSBM6616195R | 95 | 16,00 | 7,52 | 6,60 | 3,96 | 102,00 | 19,05 | 1,02 | 0.0° | 5.0° | TD..07S102 | FC14 | T7 |
left hand
| 2829442 | FSBM8212380L | 90 | 12,00 | 9,09 | 8,15 | 4,75 | 76,00 | 38,10 | 1,52 | 0.0° | 5.0° | TD..07S102 | FC14 | T7 |
| 3890861 | FSBM6616320L | 90 | 16,00 | 7,52 | 6,58 | 3,96 | 101,60 | 31,75 | 1,02 | 0.0° | 5.0° | TD..07S102 | FC14 | T7 |
| 3890856 | FSBM5212125L | 95 | 12,00 | 6,99 | 5,16 | 3,20 | 76,20 | 12,70 | 1,02 | 0.0° | 5.0° | TD..07S102 | FC11 | T7 |
