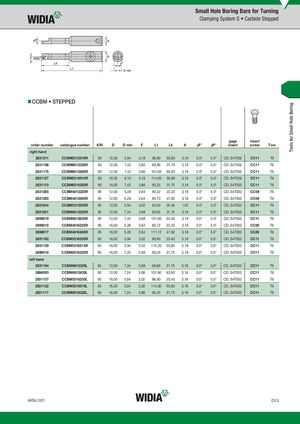

Общий каталог Widia 2017 - страница 383
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
Clamping System S • Carbide Stepped
CCBM • STEPPED
gage insert
order number catalogue number KRI D D min F L1 L4 A aF° aP° insert screw Torx
right hand
| 2831211 | CCBM5312510R | 90 | 12,00 | 5,94 | 3,18 | 88,90 | 50,80 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831188 | CCBM6612320R | 90 | 12,00 | 7,42 | 3,85 | 69,85 | 31,75 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831175 | CCBM6612630R | 90 | 12,00 | 7,42 | 3,86 | 101,60 | 63,50 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831127 | CCBM5316510R | 90 | 16,00 | 6,10 | 3,18 | 114,30 | 50,80 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831110 | CCBM6516320R | 90 | 16,00 | 7,42 | 3,86 | 95,25 | 31,75 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831265 | CCBM4812225R | 95 | 12,00 | 5,28 | 2,64 | 60,32 | 22,22 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC09 | T6 |
| 2831255 | CCBM4812485R | 95 | 12,00 | 5,28 | 2,64 | 85,73 | 47,63 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC09 | T6 |
| 2831244 | CCBM5312255R | 95 | 12,00 | 5,94 | 3,02 | 63,50 | 25,40 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831201 | CCBM6612325R | 95 | 12,00 | 7,24 | 3,68 | 69,85 | 31,75 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 3896019 | CCBM6612635R | 95 | 12,00 | 7,24 | 3,68 | 101,60 | 63,50 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 3896015 | CCBM4816225R | 95 | 16,00 | 5,28 | 2,64 | 85,72 | 22,23 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC09 | T6 |
| 3896017 | CCBM4816485R | 95 | 16,00 | 5,28 | 2,64 | 111,12 | 47,62 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC09 | T6 |
| 2831162 | CCBM5316255R | 95 | 16,00 | 5,94 | 3,02 | 88,90 | 25,40 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831139 | CCBM5316515R | 95 | 16,00 | 5,94 | 3,02 | 114,30 | 50,80 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 3896018 | CCBM6516325R | 95 | 16,00 | 7,24 | 3,68 | 95,25 | 31,75 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
left hand
| 2831194 | CCBM6612325L | 95 | 12,00 | 7,24 | 3,68 | 69,85 | 31,75 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 3896093 | CCBM6612635L | 95 | 12,00 | 7,24 | 3,68 | 101,60 | 63,50 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831157 | CCBM5316255L | 95 | 16,00 | 5,94 | 3,02 | 88,90 | 25,40 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831132 | CCBM5316515L | 95 | 16,00 | 5,94 | 3,02 | 114,30 | 50,80 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831117 | CCBM6516325L | 95 | 16,00 | 7,24 | 3,68 | 95,25 | 31,75 | 3,18 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
