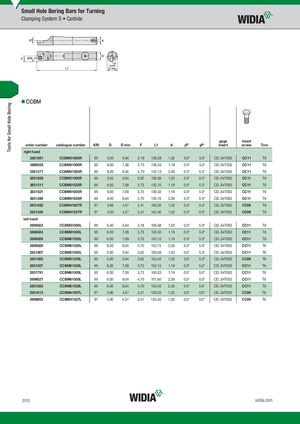

CCBM
gage insert
order number catalogue number KRI D D min F L1 A aF° aP° insert screw Torx
right hand
| 2831801 | CCBM51000R | 90 | 5,00 | 5,94 | 3,18 | 100,58 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 3896025 | CCBM61000R | 90 | 6,00 | 7,08 | 3,73 | 100,33 | 1,19 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831277 | CCBM81520R | 90 | 8,00 | 9,04 | 4,70 | 152,15 | 2,36 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831826 | CCBM51005R | 95 | 5,00 | 5,94 | 3,02 | 100,58 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831311 | CCBM61525R | 95 | 6,00 | 7,08 | 3,73 | 152,15 | 1,19 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831821 | CCBM61005R | 95 | 6,00 | 7,09 | 3,73 | 100,33 | 1,19 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831289 | CCBM81525R | 95 | 8,00 | 9,04 | 4,70 | 152,15 | 2,36 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831832 | CCBM41007R | 97 | 3,96 | 4,57 | 2,41 | 100,33 | 1,02 | 0.0° | 0.0° | CD..S4T002 | CC09 | T6 |
| 2831324 | CCBM41527R | 97 | 4,00 | 4,57 | 2,41 | 152,40 | 1,02 | 0.0° | 0.0° | CD..S4T002 | CC09 | T6 |
left hand
| 3896023 | CCBM51000L | 90 | 5,00 | 5,94 | 3,18 | 100,58 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 3896024 | CCBM61000L | 90 | 6,00 | 7,08 | 3,73 | 100,33 | 1,19 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 3896026 | CCBM61520L | 90 | 6,00 | 7,09 | 3,73 | 152,15 | 1,19 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 3896028 | CCBM81520L | 90 | 8,00 | 9,04 | 4,70 | 152,15 | 2,36 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831807 | CCBM51005L | 95 | 5,00 | 5,94 | 3,02 | 100,58 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831025 | CCBM51525L | 95 | 5,00 | 5,94 | 3,02 | 152,40 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC09 | T6 |
| 2831307 | CCBM61525L | 95 | 6,00 | 7,08 | 3,73 | 152,15 | 1,19 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831791 | CCBM61005L | 95 | 6,00 | 7,09 | 3,73 | 100,33 | 1,19 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 3896027 | CCBM81005L | 95 | 8,00 | 9,04 | 4,70 | 101,60 | 2,36 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831283 | CCBM81525L | 95 | 8,00 | 9,04 | 4,70 | 152,40 | 2,36 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831813 | CCBM41007L | 97 | 3,96 | 4,57 | 2,41 | 100,33 | 1,02 | 0.0° | 0.0° | CD..S4T002 | CC09 | T6 |
| 3896002 | CCBM41527L | 97 | 4,00 | 4,57 | 2,41 | 152,40 | 1,02 | 0.0° | 0.0° | CD..S4T002 | CC09 | T6 |
