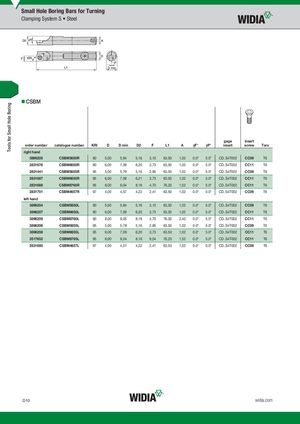

CSBM
| order number | catalogue number | KRI | D | D min | D2 | F | L1 | A | �F° | �P° | gage insert | insert screw | Torx |
| right hand | |||||||||||||
| 3896205 | CSBM5650R | 90 | 5,00 | 5,94 | 5,16 | 3,10 | 63,50 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC09 | T6 |
| 2831676 | CSBM6650R | 90 | 6,00 | 7,09 | 6,20 | 3,73 | 63,50 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831441 | CSBM5655R | 95 | 5,00 | 5,79 | 5,16 | 2,95 | 63,50 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC09 | T6 |
| 2831687 | CSBM6655R | 95 | 6,00 | 7,09 | 6,21 | 3,73 | 63,50 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831666 | CSBM8765R | 95 | 8,00 | 9,04 | 8,18 | 4,70 | 76,20 | 1,52 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831701 | CSBM4657R | 97 | 4,00 | 4,57 | 4,22 | 2,41 | 63,50 | 1,02 | 0.0° | 0.0° | CD..S4T002 | CC09 | T6 |
| left hand | |||||||||||||
| 3896204 | CSBM5650L | 90 | 5,00 | 5,94 | 5,16 | 3,10 | 63,50 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC09 | T6 |
| 3896207 | CSBM6650L | 90 | 6,00 | 7,09 | 6,20 | 3,73 | 63,50 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 3896209 | CSBM8760L | 90 | 8,00 | 9,05 | 8,18 | 4,70 | 76,00 | 2,40 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 3896206 | CSBM5655L | 95 | 5,00 | 5,78 | 5,16 | 2,95 | 63,50 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC09 | T6 |
| 3896208 | CSBM6655L | 95 | 6,00 | 7,09 | 6,20 | 3,73 | 63,50 | 1,02 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 3517652 | CSBM8765L | 95 | 8,00 | 9,04 | 8,18 | 9,04 | 76,20 | 1,52 | 0.0° | 5.0° | CD..S4T002 | CC11 | T6 |
| 2831695 | CSBM4657L | 97 | 4,00 | 4,57 | 4,22 | 2,41 | 63,50 | 1,02 | 0.0° | 0.0° | CD..S4T002 | CC09 | T6 |
