- Material Overview • DIN

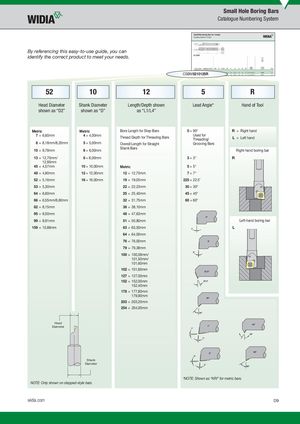

By referencing this easy-to-use guide, you can
identify the correct product to meet your needs.
CSBM5210125R
52 10 12 5 R
| Head Diameter | Shank Diameter | Length/Depth shown | Lead Angle* | Hand of Tool | |
| shown as “D2” | shown as “D” | as “L1/L4” |
| Metric | Metric | Bore Length for Step Bars | 0 = 90° | R = Right hand | |
| 7 = 6,60mm | 4 = 4,00mm | Used for |
Thread Depth for Threading Bars L = Left hand Threading/
8 = 8,18mm/8,20mm 5 = 5,00mm Overall Length for Straight Grooving Bars
Shank Bars
| 10 = 9,78mm | 6 = 6,00mm | Right-hand boring bar | |
| 13 = 12,70mm/ | 8 = 8,00mm | 3 = 3° | R |
12,95mm
| 45 = 4,57mm | 10 = 10,00mm | Metric | 5 = 5° |
| 48 = 4,80mm | 12 = 12,00mm | 12 = 12,70mm | 7 = 7° |
| 52 = 5,16mm | 16 = 16,00mm | 19 = 19,05mm | 225 = 22.5˚ |
| 53 = 5,30mm | 22 = 22,23mm | 30 = 30° | |
| 64 = 6,60mm | 25 = 25,40mm | 45 = 45° | |
| 66 = 6,55mm/6,60mm | 32 = 31,75mm | 60 = 60° |
82 = 8,15mm 38 = 38,10mm 95 = 9,50mm 48 = 47,63mm
| 99 = 9,91mm | 51 = 50,80mm | Left-hand boring bar | |
| 159 = 15,88mm | 63 = 63,50mm | L |
64 = 64,00mm 76 = 76,00mm 79 = 79,38mm 100 = 100,58mm/ 101,50mm/ 101,60mm 102 = 101,60mm 127 = 127,00mm 152 = 152,00mm 152,40mm 178 = 177,80mm 179,90mm 203 = 203,20mm 254 = 254,00mm
Head Diameter
Shank Diameter
*NOTE: Shown as “KRI” for metric bars. NOTE: Only shown on stepped-style bars.
