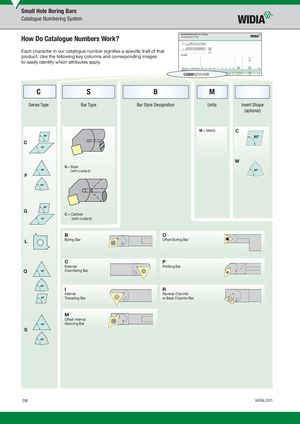

How Do Catalogue Numbers Work?

Each character in our catalogue number signifi es a specifi c trait of that product. Use the following key columns and corresponding images to easily identify which attributes apply.

CSBM5210125R

C S B M

Series Type Bar Type Bar Style Designation Units Insert Shape

(optional)

M = Metric C C

W S = Steel (with coolant) F

G C = Carbide (with coolant)

B O

L Boring Bar Offset Boring Bar

C P External Profi ling Bar Q Chamfering Bar

I R Internal Reverse Chamfer Threading Bar or Back Chamfer Bar

M Offset Internal Grooving Bar S
