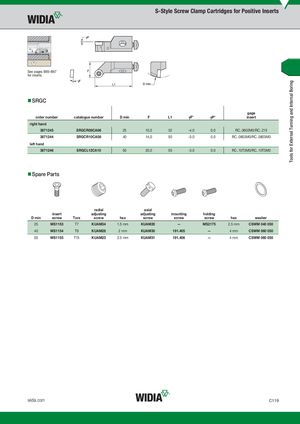

Общий каталог Widia 2017 - страница 359
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B65–B67 for inserts.
- SRGC
gage
| order number | catalogue number | D min | F | L1 | aF° | aP° | insert | |
| right hand | ||||||||
| 3871245 | SRGCR08CA06 | 25 | 10,0 | 32 | -4.0 | 0.0 | RC..0602M0/RC..215 | |
| 3871244 | SRGCR10CA08 | 40 | 14,0 | 50 | -3.0 | 0.0 | RC..0803M0/RC..0803M0 | |
| left hand | ||||||||
| 3871246 | SRGCL12CA10 | 50 | 20,0 | 55 | -3.0 | 0.0 | RC..10T3M0/RC..10T3M0 |
- Spare Parts
radial axial
| insert | adjusting | adjusting | mounting | holding | ||||||||
| D min | screw | Torx | screw | hex | screw | screw | screw | hex | washer | |||
| 25 | MS1153 | T7 | KUAM34 | 1.5 mm | KUAM20 | — | MS2175 | 2.5 mm | CSWM 040 050 | |||
| 40 | MS1154 | T9 | KUAM28 | 2 mm | KUAM30 | 191.405 | — | 4 mm | CSWM 060 050 | |||
| 50 | MS1155 | T15 | KUAM23 | 2.5 mm | KUAM31 | 191.406 | — | 4 mm | CSWM 060 050 |
