See pages B68–B80 for inserts.

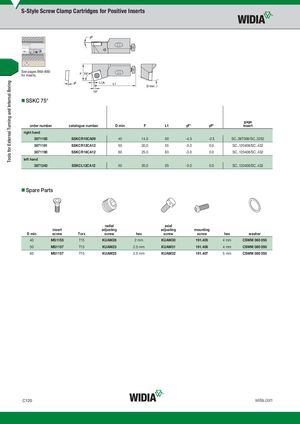

- SSKC 75°
gage
| order number | catalogue number | D min | F | L1 | aF° | aP° | insert | |
| right hand | ||||||||
| 3871192 | SSKCR10CA09 | 40 | 14,0 | 50 | -4.3 | -2.5 | SC..09T308/SC..3252 | |
| 3871191 | SSKCR12CA12 | 50 | 20,0 | 55 | -3.0 | 0.0 | SC..120408/SC..432 | |
| 3871190 | SSKCR16CA12 | 60 | 25,0 | 63 | -3.0 | 0.0 | SC..120408/SC..432 | |
| left hand | ||||||||
| 3871243 | SSKCL12CA12 | 50 | 20,0 | 55 | -3.0 | 0.0 | SC..120408/SC..432 |
- Spare Parts
radial axial
| insert | adjusting | adjusting | mounting | ||||||
| D min | screw | Torx | screw | hex | screw | screw | hex | washer | |
| 40 | MS1155 | T15 | KUAM28 | 2 mm | KUAM30 | 191.405 | 4 mm | CSWM 060 050 | |
| 50 | MS1157 | T15 | KUAM23 | 2.5 mm | KUAM31 | 191.406 | 4 mm | CSWM 060 050 | |
| 60 | MS1157 | T15 | KUAM25 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 |
