See pages B47–B64 for inserts.

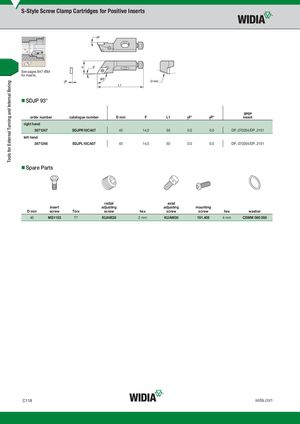

- SDJP 93°
gage
| order number | catalogue number | D min | F | L1 | aF° | aP° | insert | |||
| right hand | ||||||||||
| 3871247 | SDJPR10CA07 | 40 | 14,0 | 50 | 0.0 | 0.0 | DP..070204/DP..2151 | |||
| left hand | ||||||||||
| 3871248 | SDJPL10CA07 | 40 | 14,0 | 50 | 0.0 | 0.0 | DP..070204/DP..2151 |
- Spare Parts
radial axial
| insert | adjusting | adjusting | mounting | ||||||
| D min | screw | Torx | screw | hex | screw | screw | hex | washer | |
| 40 | MS1153 | T7 | KUAM28 | 2 mm | KUAM30 | 191.405 | 4 mm | CSWM 060 050 |
