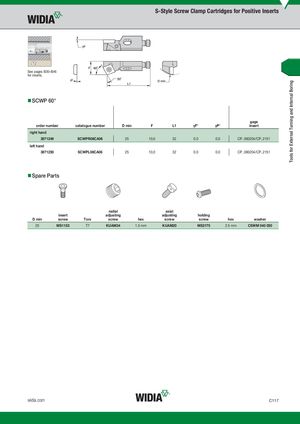

See pages B30–B46 for inserts.
- SCWP 60°
gage
order number catalogue number D min F L1 aF° aP° insert
right hand
3871249 SCWPR08CA06 25 10,0 32 0.0 0.0 CP..060204/CP..2151
left hand
3871250 SCWPL08CA06 25 10,0 32 0.0 0.0 CP..060204/CP..2151
- Spare Parts
radial axial
| insert | adjusting | adjusting | holding | ||||||
| D min | screw | Torx | screw | hex | screw | screw | hex | washer | |
| 25 | MS1153 | T7 | KUAM34 | 1.5 mm | KUAM20 | MS2175 | 2.5 mm | CSWM 040 050 |
