See pages B30–B46 for inserts.

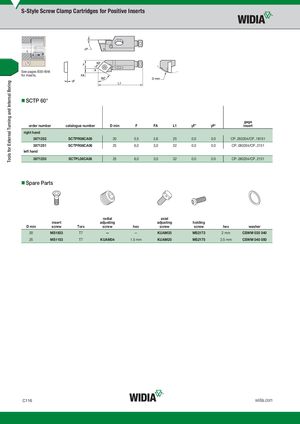

- SCTP 60°
gage
| order number | catalogue number | D min | F | FA | L1 | aF° | aP° | insert | |
| right hand | |||||||||
| 3871252 | SCTPR06CA05 | 20 | 5,5 | 2,6 | 25 | 0.0 | 0.0 | CP..050204/CP..18151 | |
| 3871251 | SCTPR08CA06 | 25 | 6,0 | 3,0 | 32 | 0.0 | 0.0 | CP..060204/CP..2151 | |
| left hand | |||||||||
| 3871253 | SCTPL08CA06 | 25 | 6,0 | 3,0 | 32 | 0.0 | 0.0 | CP..060204/CP..2151 |
- Spare Parts
radial axial
| insert | adjusting | adjusting | holding | |||||||
| D min | screw | Torx | screw | hex | screw | screw | hex | washer | ||
| 20 | MS1933 | T7 | — | — | KUAM35 | MS2173 | 2 mm | CSWM 035 040 | ||
| 25 | MS1153 | T7 | KUAM34 | 1.5 mm | KUAM20 | MS2175 | 2.5 mm | CSWM 040 050 |
