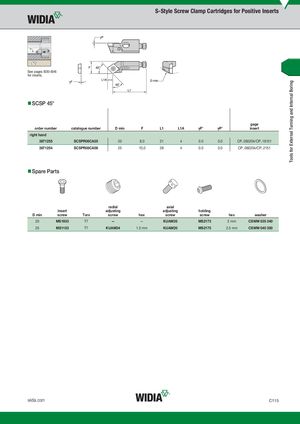

See pages B30–B46 for inserts.
- SCSP 45°
gage
| order number | catalogue number | D min | F | L1 | L1A | aF° | aP° | insert | |||
| right hand | |||||||||||
| 3871255 | SCSPR06CA05 | 20 | 8,0 | 21 | 4 | 0.0 | 0.0 | CP..050204/CP..18151 | |||
| 3871254 | SCSPR08CA06 | 25 | 10,0 | 28 | 4 | 0.0 | 0.0 | CP..060204/CP..2151 |
- Spare Parts
radial axial
| insert | adjusting | adjusting | holding | |||||||
| D min | screw | Torx | screw | hex | screw | screw | hex | washer | ||
| 20 | MS1933 | T7 | — | — | KUAM35 | MS2173 | 2 mm | CSWM 035 040 | ||
| 25 | MS1153 | T7 | KUAM34 | 1.5 mm | KUAM20 | MS2175 | 2.5 mm | CSWM 040 050 |
