See pages B30–B46 for inserts.

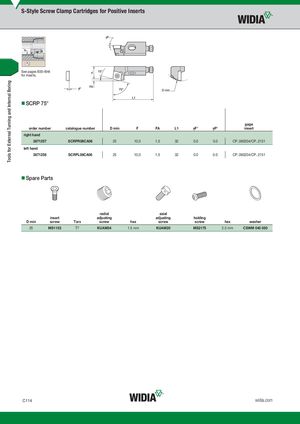

- SCRP 75°
gage
| order number | catalogue number | D min | F | FA | L1 | aF° | aP° | insert | |||
| right hand | |||||||||||
| 3871257 | SCRPR08CA06 | 25 | 10,0 | 1,5 | 32 | 0.0 | 0.0 | CP..060204/CP..2151 | |||
| left hand | |||||||||||
| 3871258 | SCRPL08CA06 | 25 | 10,0 | 1,5 | 32 | 0.0 | 0.0 | CP..060204/CP..2151 |
- Spare Parts
radial axial
| insert | adjusting | adjusting | holding | ||||||
| D min | screw | Torx | screw | hex | screw | screw | hex | washer | |
| 25 | MS1153 | T7 | KUAM34 | 1.5 mm | KUAM20 | MS2175 | 2.5 mm | CSWM 040 050 |
