See pages B30–B46 for inserts.

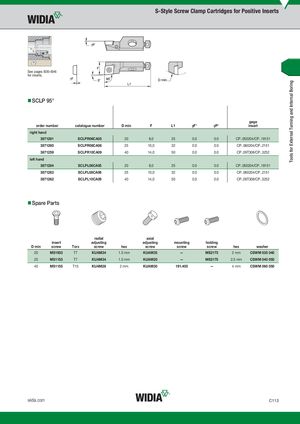

- SCLP 95°
| order number | catalogue number | D min | F | L1 | �F° | �P° | gage insert |
| right hand | |||||||
| 3871261 | SCLPR06CA05 | 20 | 8,0 | 25 | 0.0 | 0.0 | CP..050204/CP..18151 |
| 3871260 | SCLPR08CA06 | 25 | 10,0 | 32 | 0.0 | 0.0 | CP..060204/CP..2151 |
| 3871259 | SCLPR10CA09 | 40 | 14,0 | 50 | 0.0 | 0.0 | CP..09T308/CP..3252 |
| left hand | |||||||
| 3871264 | SCLPL06CA05 | 20 | 8,0 | 25 | 0.0 | 0.0 | CP..050204/CP..18151 |
| 3871263 | SCLPL08CA06 | 25 | 10,0 | 32 | 0.0 | 0.0 | CP..060204/CP..2151 |
| 3871262 | SCLPL10CA09 | 40 | 14,0 | 50 | 0.0 | 0.0 | CP..09T308/CP..3252 |
- Spare Parts
radial axial
insert adjusting adjusting mounting holding
| D min | insert screw | Torx | radial adjusting screw | hex | axial adjusting screw | mounting screw | holding screw | hex | washer |
| 20 | MS1933 | T7 | KUAM34 | 1.5 mm | KUAM35 | — | MS2173 | 2 mm | CSWM 035 040 |
| 25 | MS1153 | T7 | KUAM34 | 1.5 mm | KUAM20 | — | MS2175 | 2.5 mm | CSWM 040 050 |
| 40 | MS1155 | T15 | KUAM28 | 2 mm | KUAM30 | 191.405 | — | 4 mm | CSWM 060 050 |
