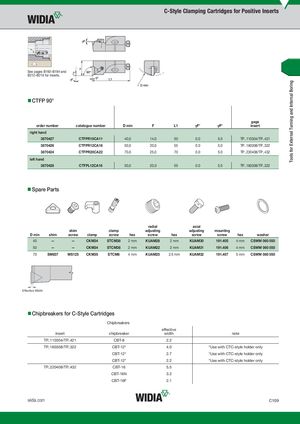

Общий каталог Widia 2017 - страница 349
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B192–B194 and B212–B216 for inserts.
- CTFP 90°
gage
| order number | catalogue number | D min | F | L1 | aF° | aP° | insert | |
| right hand | ||||||||
| 3870427 | CTFPR10CA11 | 40,0 | 14,0 | 50 | 0.0 | 5.0 | TP..110304/TP..421 | |
| 3870426 | CTFPR12CA16 | 50,0 | 20,0 | 55 | 0.0 | 5.0 | TP..160308/TP..322 | |
| 3870424 | CTFPR20CA22 | 70,0 | 25,0 | 70 | 0.0 | 5.0 | TP..220408/TP..432 | |
| left hand | ||||||||
| 3870428 | CTFPL12CA16 | 50,0 | 20,0 | 55 | 0.0 | 5.0 | TP..160308/TP..322 |
- Spare Parts
radial axial
| shim | clamp | adjusting | adjusting | mounting | ||||||||
| D min | shim | screw | clamp | screw | hex | screw | hex | screw | screw | hex | washer | |
| 40 | — | — | CKM34 | STCM38 | 2 mm | KUAM28 | 2 mm | KUAM30 | 191.405 | 4 mm | CSWM 060 050 | |
| 50 | — | — | CKM34 | STCM38 | 2 mm | KUAM22 | 2 mm | KUAM31 | 191.406 | 4 mm | CSWM 060 050 | |
| 70 | SM837 | MS125 | CKM35 | STCM8 | 4 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 |
Effective Width
- Chipbreakers for C-Style Cartridges
Chipbreakers effective
insert chipbreaker width note
| insert | Chipbreakers chipbreaker | effective width | note |
| TP..110304/TP..421 | CBT-8 | 2.2 | |
| TP..160308/TP..322 | CBT-12 | 4.0 | Use with CTC-style holder only |
| CBT-12 | 2.7 | Use with CTC-style holder only | |
| CBT-12 | 2.2 | Use with CTC-style holder only | |
| TP..220408/TP..432 | CBT-16 | 5.5 | |
| CBT-16N | 3.2 | ||
| CBT-16F | 2.1 |
