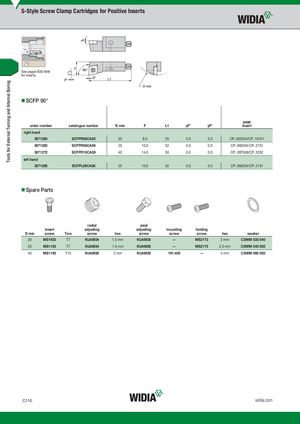

See pages B30–B46 for inserts.
- SCFP 90°
gage
| order number | catalogue number | D min | F | L1 | aF° | aP° | insert | |
| right hand | ||||||||
| 3871284 | SCFPR06CA05 | 20 | 8,0 | 25 | 0.0 | 0.0 | CP..050204/CP..18151 | |
| 3871283 | SCFPR08CA06 | 25 | 10,0 | 32 | 0.0 | 0.0 | CP..060204/CP..2151 | |
| 3871272 | SCFPR10CA09 | 40 | 14,0 | 50 | 0.0 | 0.0 | CP..09T308/CP..3252 | |
| left hand | ||||||||
| 3871285 | SCFPL08CA06 | 25 | 10,0 | 32 | 0.0 | 0.0 | CP..060204/CP..2151 |
- Spare Parts
radial axial
| insert | adjusting | adjusting | mounting | holding | ||||||||
| D min | screw | Torx | screw | hex | screw | screw | screw | hex | washer | |||
| 20 | MS1933 | T7 | KUAM34 | 1.5 mm | KUAM35 | — | MS2173 | 2 mm | CSWM 035 040 | |||
| 25 | MS1153 | T7 | KUAM34 | 1.5 mm | KUAM20 | — | MS2175 | 2.5 mm | CSWM 040 050 | |||
| 40 | MS1155 | T15 | KUAM28 | 2 mm | KUAM30 | 191.405 | — | 4 mm | CSWM 060 050 |
