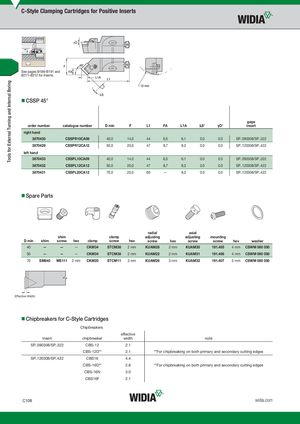

Общий каталог Widia 2017 - страница 348
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B186–B191 and B211–B212 for inserts.
- CSSP 45°
gage
| order number | catalogue number | D min | F | L1 | FA | L1A | hS° | aO° | insert | |
| right hand | ||||||||||
| 3870430 | CSSPR10CA09 | 40,0 | 14,0 | 44 | 6,5 | 6,1 | 0.0 | 0.0 | SP..090308/SP..322 | |
| 3870429 | CSSPR12CA12 | 50,0 | 20,0 | 47 | 8,7 | 8,3 | 0.0 | 0.0 | SP..120308/SP..422 | |
| left hand | ||||||||||
| 3870433 | CSSPL10CA09 | 40,0 | 14,0 | 44 | 6,5 | 6,1 | 0.0 | 0.0 | SP..090308/SP..322 | |
| 3870432 | CSSPL12CA12 | 50,0 | 20,0 | 47 | 8,7 | 8,3 | 0.0 | 0.0 | SP..120308/SP..422 | |
| 3870431 | CSSPL20CA12 | 70,0 | 25,0 | 60 | — | 8,3 | 0.0 | 0.0 | SP..120308/SP..422 |
- Spare Parts
radial axial
shim clamp adjusting adjusting mounting
| D min | shim | screw | hex | clamp | screw | hex | screw | hex | screw | screw | hex | washer | |
| 40 | — | — | — | CKM34 | STCM38 | 2 mm | KUAM28 | 2 mm | KUAM30 | 191.405 | 4 mm | CSWM 060 050 | |
| 50 | — | — | — | CKM34 | STCM38 | 2 mm | KUAM22 | 2 mm | KUAM31 | 191.406 | 4 mm | CSWM 060 050 | |
| 70 | SM840 | MS111 | 2 mm | CKM20 | STCM11 | 3 mm | KUAM26 | 3 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 |
Effective Width
- Chipbreakers for C-Style Cartridges
Chipbreakers effective
| insert | chipbreaker | width | note | |
| SP..090308/SP..322 | CBS-12 | 2.1 |
| insert | chipbreaker | effective width | note |
| SP..090308/SP..322 | CBS-12 | 2.1 | |
| CBS-12D | 2.1 | For chipbreaking on both primary and secondary cutting edges | |
| SP..120308/SP..422 | CBS16 | 4.4 | |
| CBS-16D | 2.8 | For chipbreaking on both primary and secondary cutting edges | |
| CBS-16N | 3.0 | ||
| CBS16F | 2.1 |
