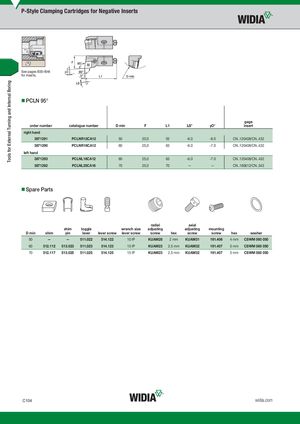

P-Style Clamping Cartridges for Negative Inserts
See pages B30–B46 for inserts.
- PCLN 95°
gage
| order number | catalogue number | D min | F | L1 | hS° | aO° | insert | |
| right hand | ||||||||
| 3871291 | PCLNR12CA12 | 50 | 20,0 | 55 | -6.0 | -9.0 | CN..120408/CN..432 | |
| 3871290 | PCLNR16CA12 | 60 | 25,0 | 63 | -6.0 | -7.0 | CN..120408/CN..432 | |
| left hand | ||||||||
| 3871293 | PCLNL16CA12 | 60 | 25,0 | 63 | -6.0 | -7.0 | CN..120408/CN..432 | |
| 3871292 | PCLNL20CA16 | 70 | 25,0 | 70 | — | — | CN..160612/CN..543 |
- Spare Parts
radial axial
| shim | toggle | wrench size | adjusting | adjusting | mounting | ||||||||||
| D min | shim | pin | lever | lever screw | lever screw | screw | hex | screw | screw | hex | washer | ||||
| 50 | — | — | 511.022 | 514.122 | 10 IP | KUAM28 | 2 mm | KUAM31 | 191.406 | 4 mm | CSWM 060 050 | ||||
| 60 | 512.112 | 513.023 | 511.023 | 514.123 | 15 IP | KUAM23 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 | ||||
| 70 | 512.117 | 513.025 | 511.025 | 514.125 | 15 IP | KUAM23 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 |
