See pages B81–B93 for inserts.

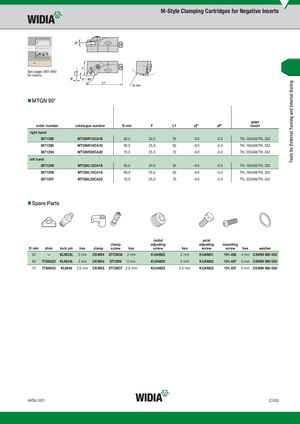

- MTGN 90°
| order number | catalogue number | D min | F | L1 | �F° | �P° | gage insert |
| right hand | |||||||
| 3871296 | MTGNR12CA16 | 50,0 | 20,0 | 55 | -9.0 | -5.0 | TN..160408/TN..332 |
| 3871295 | MTGNR16CA16 | 60,0 | 25,0 | 63 | -9.0 | -5.0 | TN..160408/TN..332 |
| 3871294 | MTGNR20CA22 | 70,0 | 25,0 | 70 | -9.0 | -5.0 | TN..220408/TN..432 |
| left hand 3871299 | MTGNL12CA16 | 50,0 | 20,0 | 55 | -9.0 | -5.0 | TN..160408/TN..332 |
| 3871298 | MTGNL16CA16 | 60,0 | 25,0 | 63 | -9.0 | -5.0 | TN..160408/TN..332 |
| 3871297 | MTGNL20CA22 | 70,0 | 25,0 | 70 | -9.0 | -5.0 | TN..220408/TN..432 |
- Spare Parts
radial axial
clamp adjusting adjusting mounting
| D min | shim | lock pin | hex | clamp | screw | hex | screw | hex | screw | screw | hex | washer | ||
| 50 | — | KLM33L | 2 mm | CKM34 | STCM38 | 2 mm | KUAM22 | 2 mm | KUAM31 | 191.406 | 4 mm | CSWM 060 050 | ||
| 60 | ITSN322 | KLM34L | 2 mm | CKM34 | STCM9 | 2 mm | KUAM25 | 2 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 | ||
| 70 | ITSN433 | KLM46 | 2.5 mm | CKM35 | STCM37 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 |
