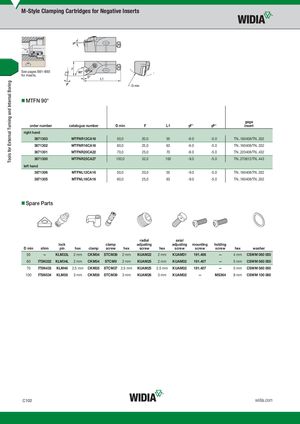

See pages B81–B93 for inserts.
- MTFN 90°
gage
| order number | catalogue number | D min | F | L1 | aF° | aP° | insert | |
| right hand | ||||||||
| 3871303 | MTFNR12CA16 | 50,0 | 20,0 | 55 | -9.0 | -5.0 | TN..160408/TN..332 | |
| 3871302 | MTFNR16CA16 | 60,0 | 25,0 | 63 | -9.0 | -5.0 | TN..160408/TN..332 | |
| 3871301 | MTFNR20CA22 | 70,0 | 25,0 | 70 | -9.0 | -5.0 | TN..220408/TN..432 | |
| 3871300 | MTFNR25CA27 | 100,0 | 32,0 | 100 | -9.0 | -5.0 | TN..270612/TN..443 | |
| left hand | ||||||||
| 3871306 | MTFNL12CA16 | 50,0 | 20,0 | 55 | -9.0 | -5.0 | TN..160408/TN..332 | |
| 3871305 | MTFNL16CA16 | 60,0 | 25,0 | 63 | -9.0 | -5.0 | TN..160408/TN..332 |
- Spare Parts
radial axial
| lock | clamp | adjusting | adjusting | mounting | holding | ||||||||||
| D min | shim | pin | hex | clamp | screw | hex | screw | hex | screw | screw | screw | hex | washer | ||
| 50 | — | KLM33L | 2 mm | CKM34 | STCM38 | 2 mm | KUAM22 | 2 mm | KUAM31 | 191.406 | — | 4 mm | CSWM 060 050 | ||
| 60 | ITSN322 | KLM34L | 2 mm | CKM34 | STCM9 | 2 mm | KUAM25 | 2 mm | KUAM32 | 191.407 | — | 5 mm | CSWM 080 050 | ||
| 70 | ITSN433 | KLM46 | 2.5 mm | CKM35 | STCM37 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | — | 5 mm | CSWM 080 050 | ||
| 100 | ITSN534 | KLM58 | 3 mm | CKM38 | STCM39 | 3 mm | KUAM26 | 3 mm | KUAM32 | — | MS364 | 8 mm | CSWM 100 080 |
