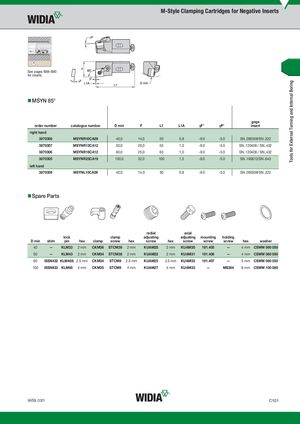

See pages B68–B80 for inserts.
- MSYN 85°
| order number | catalogue number | D min | F | L1 | L1A | �F° | �P° | gage insert |
| right hand | ||||||||
| 3870308 | MSYNR10CA09 | 40,0 | 14,0 | 50 | 0,8 | -9.0 | -5.0 | SN..090308/SN..322 |
| 3870307 | MSYNR12CA12 | 50,0 | 20,0 | 55 | 1,0 | -9.0 | -5.0 | SN..120408 / SN..432 |
| 3870306 | MSYNR16CA12 | 60,0 | 25,0 | 63 | 1,0 | -9.0 | -5.0 | SN..120408 / SN..432 |
| 3870305 | MSYNR25CA19 | 100,0 | 32,0 | 100 | 1,5 | -9.0 | -5.0 | SN..190612/SN..643 |
| left hand | ||||||||
| 3870309 | MSYNL10CA09 | 40,0 | 14,0 | 50 | 0,8 | -9.0 | -5.0 | SN..090308/SN..322 |
- Spare Parts
radial axial
| lock | clamp | adjusting | adjusting | mounting | holding | ||||||||||
| D min | shim | pin | hex | clamp | screw | hex | screw | hex | screw | screw | screw | hex | washer | ||
| 40 | — | KLM33 | 2 mm | CKM36 | STCM38 | 2 mm | KUAM28 | 2 mm | KUAM30 | 191.405 | — | 4 mm | CSWM 060 050 | ||
| 50 | — | KLM43 | 2 mm | CKM34 | STCM38 | 2 mm | KUAM22 | 2 mm | KUAM31 | 191.406 | — | 4 mm | CSWM 060 050 | ||
| 60 | ISSN432 KLM46S | 2.5 mm | CKM34 | STCM9 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | — | 5 mm | CSWM 080 050 | |||
| 100 | ISSN633 KLM68 | 4 mm | CKM35 | STCM8 | 4 mm | KUAM27 | 4 mm | KUAM33 | — | MS364 | 8 mm | CSWM 100 080 |
