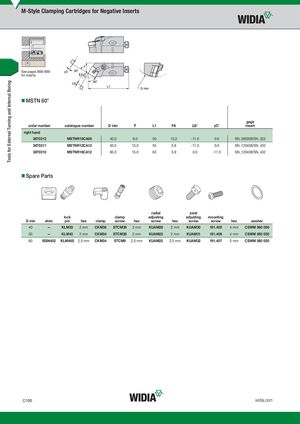

See pages B68–B80 for inserts.
- MSTN 60°
gage
| order number | catalogue number | D min | F | L1 | FA | hS° | aO° | insert | |||
| right hand | |||||||||||
| 3870312 | MSTNR10CA09 | 40,0 | 9,0 | 50 | 13,3 | -11.0 | 0.0 | SN..090308/SN..322 | |||
| 3870311 | MSTNR12CA12 | 50,0 | 13,0 | 55 | 5,9 | -11.0 | 0.0 | SN..120408/SN..432 | |||
| 3870310 | MSTNR16CA12 | 60,0 | 15,0 | 63 | 5,9 | 0.0 | -11.0 | SN..120408/SN..432 |
- Spare Parts
radial axial
lock clamp adjusting adjusting mounting
| D min | shim | pin | hex | clamp | screw | hex | screw | hex | screw | screw | hex | washer | |||
| 40 | — | KLM33 | 2 mm | CKM36 | STCM38 | 2 mm | KUAM28 | 2 mm | KUAM30 | 191.405 | 4 mm | CSWM 060 050 | |||
| 50 | — | KLM43 | 2 mm | CKM34 | STCM38 | 2 mm | KUAM22 | 2 mm | KUAM31 | 191.406 | 4 mm | CSWM 060 050 | |||
| 60 | ISSN432 | KLM46S | 2.5 mm | CKM34 | STCM9 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 |
