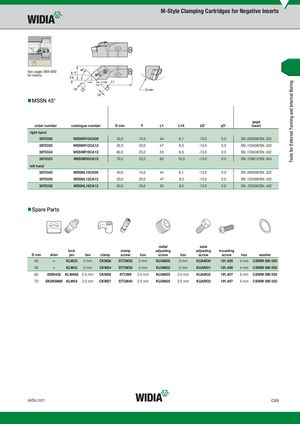

Общий каталог Widia 2017 - страница 339
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B68–B80 for inserts.
- MSSN 45°
| order number | catalogue number | D min | F | L1 | L1A | �S° | �O° | gage insert |
| right hand | ||||||||
| 3870336 | MSSNR10CA09 | 40,0 | 14,0 | 44 | 6,1 | -13.0 | 0.0 | SN..090308/SN..322 |
| 3870335 | MSSNR12CA12 | 50,0 | 20,0 | 47 | 8,3 | -13.0 | 0.0 | SN..120408/SN..432 |
| 3870334 | MSSNR16CA12 | 60,0 | 25,0 | 53 | 8,3 | -13.0 | 0.0 | SN..120408/SN..432 |
| 3870333 | MSSNR20CA15 | 70,0 | 25,0 | 60 | 10,3 | -13.0 | 0.0 | SN..150612/SN..543 |
| left hand | ||||||||
| 3870340 | MSSNL10CA09 | 40,0 | 14,0 | 44 | 6,1 | -13.0 | 0.0 | SN..090308/SN..322 |
| 3870339 | MSSNL12CA12 | 50,0 | 20,0 | 47 | 8,3 | -13.0 | 0.0 | SN..120408/SN..432 |
| 3870338 | MSSNL16CA12 | 60,0 | 25,0 | 53 | 8,3 | -13.0 | 0.0 | SN..120408/SN..432 |
- Spare Parts
radial axial
lock clamp adjusting adjusting mounting
| D min | shim | lock pin | hex | clamp | clamp screw | hex | radial adjusting screw | hex | axial adjusting screw | mounting screw | hex | washer |
| 40 | — | KLM33 | 2 mm | CKM36 | STCM38 | 2 mm | KUAM28 | 2 mm | KUAM30 | 191.405 | 4 mm | CSWM 060 050 |
| 50 | — | KLM43 | 2 mm | CKM34 | STCM38 | 2 mm | KUAM22 | 2 mm | KUAM31 | 191.406 | 4 mm | CSWM 060 050 |
| 60 | ISSN432 | KLM46S | 2.5 mm | CKM36 | STCM9 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 |
| 70 | SKSN566K | KLM54 | 2.5 mm | CKM37 | STCM40 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 |
