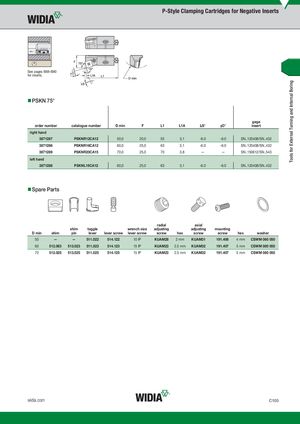

P-Style Clamping Cartridges for Negative Inserts
See pages B68–B80 for inserts.
- PSKN 75°
gage
| order number | catalogue number | D min | F | L1 | L1A | hS° | aO° | insert | |
| right hand | |||||||||
| 3871287 | PSKNR12CA12 | 50,0 | 20,0 | 55 | 3,1 | -8.0 | -6.0 | SN..120408/SN..432 | |
| 3871286 | PSKNR16CA12 | 60,0 | 25,0 | 63 | 3,1 | -6.0 | -6.0 | SN..120408/SN..432 | |
| 3871289 | PSKNR20CA15 | 70,0 | 25,0 | 70 | 3,8 | — | — | SN..150612/SN..543 | |
| left hand | |||||||||
| 3871288 | PSKNL16CA12 | 60,0 | 25,0 | 63 | 3,1 | -6.0 | -6.0 | SN..120408/SN..432 |
- Spare Parts
radial axial
| shim | toggle | wrench size | adjusting | adjusting | mounting | ||||||||||
| D min | shim | pin | lever | lever screw | lever screw | screw | hex | screw | screw | hex | washer | ||||
| 50 | — | — | 511.022 | 514.122 | 10 IP | KUAM28 | 2 mm | KUAM31 | 191.406 | 4 mm | CSWM 060 050 | ||||
| 60 | 512.063 | 513.023 | 511.023 | 514.123 | 15 IP | KUAM23 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 | ||||
| 70 | 512.025 | 513.025 | 511.025 | 514.125 | 15 IP | KUAM23 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 |
