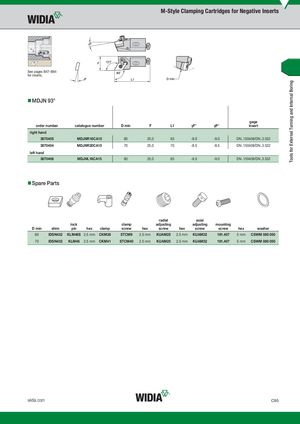

Общий каталог Widia 2017 - страница 335
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B47–B64 for inserts.
- MDJN 93°
gage
| order number | catalogue number | D min | F | L1 | aF° | aP° | insert | |
| right hand | ||||||||
| 3870405 | MDJNR16CA15 | 60 | 25,0 | 63 | -9.0 | -9.0 | DN..150408/DN..3.532 | |
| 3870404 | MDJNR20CA15 | 70 | 25,0 | 70 | -8.5 | -8.5 | DN..150408/DN..3.532 | |
| left hand | ||||||||
| 3870406 | MDJNL16CA15 | 60 | 25,0 | 63 | -9.0 | -9.0 | DN..150408/DN..3.532 |
- Spare Parts
radial axial
lock clamp adjusting adjusting mounting
| D min | shim | pin | hex | clamp | screw | hex | screw | hex | screw | screw | hex | washer | ||
| 60 | IDSN432 | KLM46S | 2.5 mm | CKM36 | STCM9 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 | ||
| 70 | IDSN432 | KLM46 | 2.5 mm | CKM41 | STCM40 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 |
