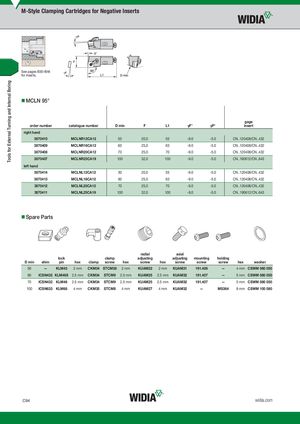

Общий каталог Widia 2017 - страница 334
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B30–B46 for inserts.
- MCLN 95°
| order number | catalogue number | D min | F | L1 | �F° | �P° | gage insert |
| right hand | |||||||
| 3870410 | MCLNR12CA12 | 50 | 20,0 | 55 | -9.0 | -5.0 | CN..120408/CN..432 |
| 3870409 | MCLNR16CA12 | 60 | 25,0 | 63 | -9.0 | -5.0 | CN..120408/CN..432 |
| 3870408 | MCLNR20CA12 | 70 | 25,0 | 70 | -9.0 | -5.0 | CN..120408/CN..432 |
| 3870407 | MCLNR25CA19 | 100 | 32,0 | 100 | -9.0 | -5.0 | CN..190612/CN..643 |
| left hand | |||||||
| 3870414 | MCLNL12CA12 | 50 | 20,0 | 55 | -9.0 | -5.0 | CN..120408/CN..432 |
| 3870413 | MCLNL16CA12 | 60 | 25,0 | 63 | -9.0 | -5.0 | CN..120408/CN..432 |
| 3870412 | MCLNL20CA12 | 70 | 25,0 | 70 | -9.0 | -5.0 | CN..120408/CN..432 |
| 3870411 | MCLNL25CA19 | 100 | 32,0 | 100 | -9.0 | -5.0 | CN..190612/CN..643 |
- Spare Parts
radial axial
| lock | clamp | adjusting | adjusting | mounting | holding | ||||||||||
| D min | shim | pin | hex | clamp | screw | hex | screw | hex | screw | screw | screw | hex | washer | ||
| 50 | — | KLM43 | 2 mm | CKM34 STCM38 | 2 mm | KUAM22 | 2 mm | KUAM31 | 191.406 | — | 4 mm | CSWM 060 050 | |||
| 60 | ICSN432 KLM46S | 2.5 mm | CKM34 | STCM9 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | — | 5 mm | CSWM 080 050 | |||
| 70 | ICSN432 KLM46 | 2.5 mm | CKM34 | STCM9 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | — | 5 mm | CSWM 080 050 | |||
| 100 | ICSN633 KLM68 | 4 mm | CKM35 | STCM8 | 4 mm | KUAM27 | 4 mm | KUAM32 | — | MS364 | 8 mm | CSWM 100 080 |
