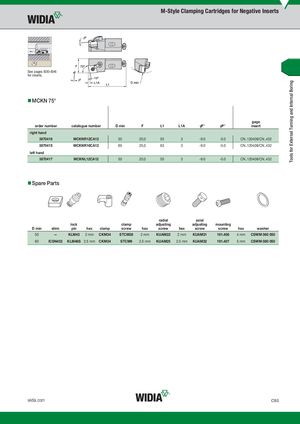

See pages B30–B46 for inserts.
- MCKN 75°
| order number | catalogue number | D min | F | L1 | L1A | �F° | �P° | gage insert |
| right hand 3870416 | MCKNR12CA12 | 50 | 20,0 | 55 | 3 | -9.0 | -5.0 | CN..120408/CN..432 |
| 3870415 | MCKNR16CA12 | 60 | 25,0 | 63 | 3 | -9.0 | -5.0 | CN..120408/CN..432 |
| left hand | ||||||||
| 3870417 | MCKNL12CA12 | 50 | 20,0 | 55 | 3 | -9.0 | -5.0 | CN..120408/CN..432 |
- Spare Parts
radial axial
lock clamp adjusting adjusting mounting
| D min | shim | pin | hex | clamp | screw | hex | screw | hex | screw | screw | hex | washer | |||
| 50 | — | KLM43 | 2 mm | CKM34 | STCM38 | 2 mm | KUAM22 | 2 mm | KUAM31 | 191.406 | 4 mm | CSWM 060 050 | |||
| 60 | ICSN432 | KLM46S | 2.5 mm | CKM34 | STCM9 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 |
