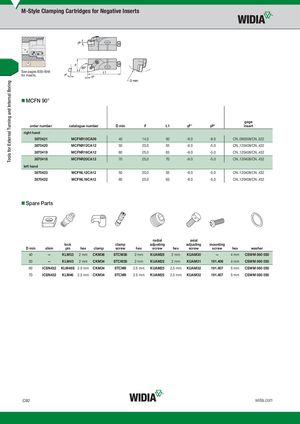

See pages B30–B46 for inserts.
- MCFN 90°
gage
| order number | catalogue number | D min | F | L1 | aF° | aP° | insert | |
| right hand | ||||||||
| 3870421 | MCFNR10CA09 | 40 | 14,0 | 50 | -9.0 | -9.0 | CN..090308/CN..322 | |
| 3870420 | MCFNR12CA12 | 50 | 20,0 | 55 | -9.0 | -5.0 | CN..120408/CN..432 | |
| 3870419 | MCFNR16CA12 | 60 | 25,0 | 63 | -9.0 | -5.0 | CN..120408/CN..432 | |
| 3870418 | MCFNR20CA12 | 70 | 25,0 | 70 | -9.0 | -5.0 | CN..120408/CN..432 | |
| left hand | ||||||||
| 3870423 | MCFNL12CA12 | 50 | 20,0 | 55 | -9.0 | -5.0 | CN..120408/CN..432 | |
| 3870422 | MCFNL16CA12 | 60 | 25,0 | 63 | -9.0 | -5.0 | CN..120408/CN..432 |
- Spare Parts
radial axial
lock clamp adjusting adjusting mounting
| D min | shim | pin | hex | clamp | screw | hex | screw | hex | screw | screw | hex | washer | |||
| 40 | — | KLM33 | 2 mm | CKM36 | STCM38 | 2 mm | KUAM28 | 2 mm | KUAM30 | — | 4 mm | CSWM 060 050 | |||
| 50 | — | KLM43 | 2 mm | CKM34 | STCM38 | 2 mm | KUAM22 | 2 mm | KUAM31 | 191.406 | 4 mm | CSWM 060 050 | |||
| 60 | ICSN432 | KLM46S | 2.5 mm | CKM34 | STCM9 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 | |||
| 70 | ICSN432 | KLM46 | 2.5 mm | CKM34 | STCM9 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 |
