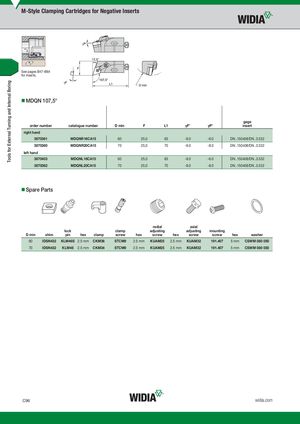

See pages B47–B64 for inserts.
- MDQN 107,5°
gage
| order number | catalogue number | D min | F | L1 | aF° | aP° | insert | |
| right hand | ||||||||
| 3870361 | MDQNR16CA15 | 60 | 25,0 | 63 | -9.0 | -6.0 | DN..150408/DN..3.532 | |
| 3870360 | MDQNR20CA15 | 70 | 25,0 | 70 | -9.0 | -8.0 | DN..150408/DN..3.532 | |
| left hand | ||||||||
| 3870403 | MDQNL16CA15 | 60 | 25,0 | 63 | -9.0 | -6.0 | DN..150408/DN..3.532 | |
| 3870362 | MDQNL20CA15 | 70 | 25,0 | 70 | -9.0 | -8.0 | DN..150408/DN..3.532 |
- Spare Parts
radial axial
lock clamp adjusting adjusting mounting
| D min | shim | pin | hex | clamp | screw | hex | screw | hex | screw | screw | hex | washer | |
| 60 | IDSN432 | KLM46S | 2.5 mm | CKM36 | STCM9 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 | |
| 70 | IDSN432 | KLM46 | 2.5 mm | CKM34 | STCM9 | 2.5 mm | KUAM25 | 2.5 mm | KUAM32 | 191.407 | 5 mm | CSWM 080 050 |
