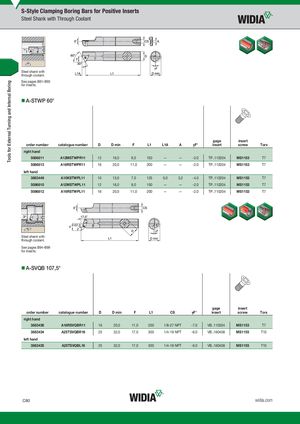

Общий каталог Widia 2017 - страница 320
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
Steel shank with through coolant. See pages B81–B93 for inserts.
- A-STWP 60°
| order number | catalogue number | D | D min | F | L1 | L1A | A | �F° | gage insert | insert screw | Torx |
| right hand | |||||||||||
| 5086811 | A12MSTWPR11 | 12 | 16,0 | 9,0 | 150 | — | — | -2.0 | TP..110204 | MS1153 | T7 |
| 5086813 | A16RSTWPR11 | 16 | 20,0 | 11,0 | 200 | — | — | -2.0 | TP..110204 | MS1153 | T7 |
| left hand | |||||||||||
| 3883449 | A10KSTWPL11 | 10 | 13,0 | 7,0 | 125 | 5,0 | 3,2 | -4.0 | TP..110204 | MS1153 | T7 |
| 5086810 | A12MSTWPL11 | 12 | 16,0 | 9,0 | 150 | — | — | -2.0 | TP..110204 | MS1153 | T7 |
| 5086812 | A16RSTWPL11 | 16 | 20,0 | 11,0 | 200 | — | — | -2.0 | TP..110204 | MS1153 | T7 |
Steel shank with through coolant. See pages B94–B99 for inserts.
- A-SVQB 107,5°
gage insert
order number catalogue number D D min F L1 CS aF° insert screw Torx
right hand
| order number | catalogue number | D | D min | F | L1 | CS | �F° | gage insert | insert screw | Torx |
| right hand 3883436 | A16RSVQBR11 | 16 | 20,0 | 11,0 | 200 | 1/8-27 NPT | -7.0 | VB..110304 | MS1153 | T7 |
| 3883434 | A25TSVQBR16 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | -6.0 | VB..160408 | MS1155 | T15 |
| left hand | ||||||||||
| 3883435 | A25TSVQBL16 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | -6.0 | VB..160408 | MS1155 | T15 |
