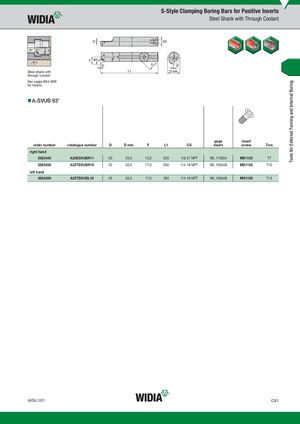

Steel shank with through coolant. See pages B94–B99 for inserts.
A-SVUB 93°
| order number | catalogue number | D | D min | F | L1 | CS | gage insert | insert screw | Torx |
| right hand | |||||||||
| 3883440 | A20SSVUBR11 | 20 | 25,0 | 13,0 | 250 | 1/8-27 NPT | VB..110304 | MS1153 | T7 |
| 3883438 | A25TSVUBR16 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | VB..160408 | MS1155 | T15 |
| left hand | |||||||||
| 3883439 | A25TSVUBL16 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | VB..160408 | MS1155 | T15 |
