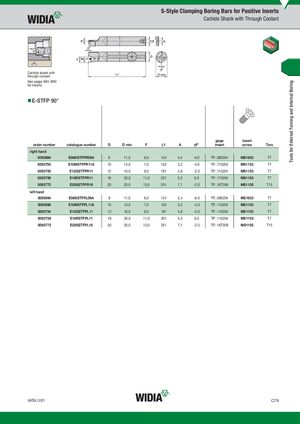

Carbide shank with through coolant. See pages B81–B93 for inserts.
E-STFP 90°
| order number | catalogue number | D | D min | F | L1 | A | �F° | gage insert | insert screw | Torx |
| right hand | ||||||||||
| 5093696 | E08KSTFPR09A | 8 | 11,0 | 6,0 | 124 | 2,4 | -6.0 | TP..090204 | MS1933 | T7 |
| 5093750 | E10MSTFPR11A | 10 | 13,0 | 7,0 | 152 | 3,2 | -4.0 | TP..110204 | MS1153 | T7 |
| 5093755 | E12QSTFPR11 | 12 | 16,0 | 9,0 | 181 | 4,8 | -2.0 | TP..110204 | MS1153 | T7 |
| 5093759 | E16RSTFPR11 | 16 | 20,0 | 11,0 | 201 | 5,5 | 0.0 | TP..110204 | MS1153 | T7 |
| 5093773 | E20SSTFPR16 | 20 | 25,0 | 13,0 | 251 | 7,1 | -2.0 | TP..16T308 | MS1155 | T15 |
| left hand | ||||||||||
| 5093694 | E08KSTFPL09A | 8 | 11,0 | 6,0 | 124 | 2,4 | -6.0 | TP..090204 | MS1933 | T7 |
| 5093699 | E10MSTFPL11A | 10 | 13,0 | 7,0 | 152 | 3,2 | -4.0 | TP..110204 | MS1153 | T7 |
| 5093754 | E12QSTFPL11 | 12 | 16,0 | 9,0 | 181 | 4,8 | -2.0 | TP..110204 | MS1153 | T7 |
| 5093758 | E16RSTFPL11 | 16 | 20,0 | 11,0 | 201 | 5,5 | 0.0 | TP..110204 | MS1153 | T7 |
| 5093772 | E20SSTFPL16 | 20 | 25,0 | 13,0 | 251 | 7,1 | -2.0 | TP..16T308 | MS1155 | T15 |
