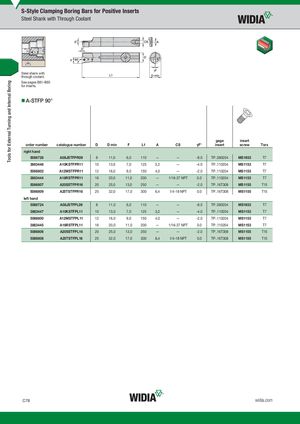

Steel shank with through coolant. See pages B81–B93 for inserts.
A-STFP 90°
| order number | catalogue number | D | D min | F | L1 | A | CS | �F° | gage insert | insert screw | Torx |
| right hand | |||||||||||
| 5086726 | A08JSTFPR09 | 8 | 11,0 | 6,0 | 110 | — | — | -8.0 | TP..090204 | MS1933 | T7 |
| 3883446 | A10KSTFPR11 | 10 | 13,0 | 7,0 | 125 | 3,2 | — | -4.0 | TP..110204 | MS1153 | T7 |
| 5086802 | A12MSTFPR11 | 12 | 16,0 | 9,0 | 150 | 4,0 | — | -2.0 | TP..110204 | MS1153 | T7 |
| 3883444 | A16RSTFPR11 | 16 | 20,0 | 11,0 | 200 | — | 1/16-27 NPT | 0.0 | TP..110204 | MS1153 | T7 |
| 5086807 | A20SSTFPR16 | 20 | 25,0 | 13,0 | 250 | — | — | -2.0 | TP..16T308 | MS1155 | T15 |
| 5086809 | A25TSTFPR16 | 25 | 32,0 | 17,0 | 300 | 6,4 | 1/4-18 NPT | 0.0 | TP..16T308 | MS1155 | T15 |
| left hand | |||||||||||
| 5086724 | A08JSTFPL09 | 8 | 11,0 | 6,0 | 110 | — | — | -8.0 | TP..090204 | MS1933 | T7 |
| 3883447 | A10KSTFPL11 | 10 | 13,0 | 7,0 | 125 | 3,2 | — | -4.0 | TP..110204 | MS1153 | T7 |
| 5086800 | A12MSTFPL11 | 12 | 16,0 | 9,0 | 150 | 4,0 | — | -2.0 | TP..110204 | MS1153 | T7 |
| 3883445 | A16RSTFPL11 | 16 | 20,0 | 11,0 | 200 | — | 1/16-27 NPT | 0.0 | TP..110204 | MS1153 | T7 |
| 5086806 | A20SSTFPL16 | 20 | 25,0 | 13,0 | 250 | — | — | -2.0 | TP..16T308 | MS1155 | T15 |
| 5086808 | A25TSTFPL16 | 25 | 32,0 | 17,0 | 300 | 6,4 | 1/4-18 NPT | 0.0 | TP..16T308 | MS1155 | T15 |
