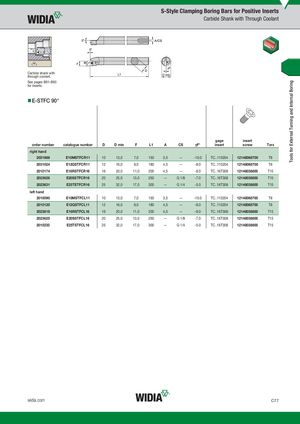

Carbide shank with through coolant. See pages B81–B93 for inserts.
E-STFC 90°
| order number | catalogue number | D | D min | F | L1 | A | CS | �F° | gage insert | insert screw | Torx |
| right hand | |||||||||||
| 2031888 | E10MSTFCR11 | 10 | 13,0 | 7,0 | 150 | 3,5 | — | -10.0 | TC..110204 | 12148068700 | T8 |
| 2031024 | E12QSTFCR11 | 12 | 16,0 | 9,0 | 180 | 4,5 | — | -8.0 | TC..110204 | 12148068700 | T8 |
| 2010174 | E16RSTFCR16 | 16 | 20,0 | 11,0 | 200 | 4,5 | — | -9.0 | TC..16T308 | 12148038800 | T15 |
| 2023626 | E20SSTFCR16 | 20 | 25,0 | 13,0 | 250 | — | G 1/8 | -7.0 | TC..16T308 | 12148038800 | T15 |
| 2023631 | E25TSTFCR16 | 25 | 32,0 | 17,0 | 300 | — | G 1/4 | -5.0 | TC..16T308 | 12148038800 | T15 |
| left hand | |||||||||||
| 2010090 | E10MSTFCL11 | 10 | 13,0 | 7,0 | 150 | 3,5 | — | -10.0 | TC..110204 | 12148068700 | T8 |
| 2010120 | E12QSTFCL11 | 12 | 16,0 | 9,0 | 180 | 4,5 | — | -8.0 | TC..110204 | 12148068700 | T8 |
| 2023618 | E16RSTFCL16 | 16 | 20,0 | 11,0 | 200 | 4,5 | — | -9.0 | TC..16T308 | 12148038800 | T15 |
| 2023625 | E20SSTFCL16 | 20 | 25,0 | 13,0 | 250 | — | G 1/8 | -7.0 | TC..16T308 | 12148038800 | T15 |
| 2010233 | E25TSTFCL16 | 25 | 32,0 | 17,0 | 300 | — | G 1/4 | -5.0 | TC..16T308 | 12148038800 | T15 |
