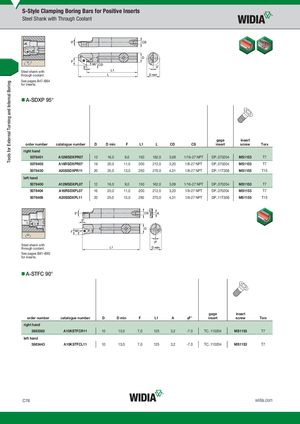

Общий каталог Widia 2017 - страница 316
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
Steel shank with through coolant. See pages B47–B64 for inserts.
- A-SDXP 95°
gage insert
| order number | catalogue number | D | D min | F | L1 | L | CD | CS | insert | screw | Torx | ||
| right hand | |||||||||||||
| 5078401 | A12MSDXPR07 | 12 | 16,0 | 9,0 | 150 | 162,0 | 3,09 | 1/16-27 NPT | DP..070204 | MS1153 | T7 | ||
| 5078405 | A16RSDXPR07 | 16 | 20,0 | 11,0 | 200 | 212,0 | 3,20 | 1/8-27 NPT | DP..070204 | MS1153 | T7 | ||
| 5078430 | A20SSDXPR11 | 20 | 25,0 | 13,0 | 250 | 270,0 | 4,31 | 1/8-27 NPT | DP..11T308 | MS1155 | T15 | ||
| left hand | |||||||||||||
| 5078400 | A12MSDXPL07 | 12 | 16,0 | 9,0 | 150 | 162,0 | 3,09 | 1/16-27 NPT | DP..070204 | MS1153 | T7 | ||
| 5078404 | A16RSDXPL07 | 16 | 20,0 | 11,0 | 200 | 212,0 | 3,20 | 1/8-27 NPT | DP..070204 | MS1153 | T7 | ||
| 5078409 | A20SSDXPL11 | 20 | 25,0 | 13,0 | 250 | 270,0 | 4,31 | 1/8-27 NPT | DP..11T308 | MS1155 | T15 |
Steel shank with through coolant. See pages B81–B93 for inserts.
- A-STFC 90°
gage insert
| order number | catalogue number | D | D min | F | L1 | A | aF° | insert | screw | Torx | |
| right hand | |||||||||||
| 3883382 | A10KSTFCR11 | 10 | 13,0 | 7,0 | 125 | 3,2 | -7.0 TC..110204 | MS1153 | T7 | ||
| left hand | |||||||||||
| 3883443 | A10KSTFCL11 | 10 | 13,0 | 7,0 | 125 | 3,2 | -7.0 TC..110204 | MS1153 | T7 |
