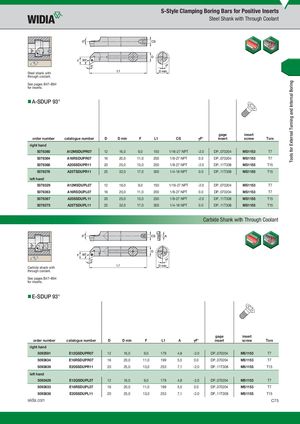

Steel shank with through coolant. See pages B47–B64 for inserts.
- A-SDUP 93°
| order number | catalogue number | D | D min | F | L1 | CS | �F° | gage insert | insert screw | Torx |
| right hand | ||||||||||
| 5078360 | A12MSDUPR07 | 12 | 16,0 | 9,0 | 150 | 1/16-27 NPT | -2.0 | DP..070204 | MS1153 | T7 |
| 5078364 | A16RSDUPR07 | 16 | 20,0 | 11,0 | 200 | 1/8-27 NPT | 0.0 | DP..070204 | MS1153 | T7 |
| 5078368 | A20SSDUPR11 | 20 | 25,0 | 13,0 | 250 | 1/8-27 NPT | -2.0 | DP..11T308 | MS1155 | T15 |
| 5078376 | A25TSDUPR11 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | 0.0 | DP..11T308 | MS1155 | T15 |
| left hand | ||||||||||
| 5078329 | A12MSDUPL07 | 12 | 16,0 | 9,0 | 150 | 1/16-27 NPT | -2.0 | DP..070204 | MS1153 | T7 |
| 5078363 | A16RSDUPL07 | 16 | 20,0 | 11,0 | 200 | 1/8-27 NPT | 0.0 | DP..070204 | MS1153 | T7 |
| 5078367 | A20SSDUPL11 | 20 | 25,0 | 13,0 | 250 | 1/8-27 NPT | -2.0 | DP..11T308 | MS1155 | T15 |
| 5078375 | A25TSDUPL11 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | 0.0 | DP..11T308 | MS1155 | T15 |
Carbide Shank with Through Coolant
Carbide shank with through coolant. See pages B47–B64 for inserts.
- E-SDUP 93°
gage insert
order number catalogue number D D min F L1 A aF° insert screw Torx
right hand
| order number | catalogue number | D | D min | F | L1 | A | �F° | gage insert | insert screw | Torx |
| right hand | ||||||||||
| 5093591 | E12QSDUPR07 | 12 | 16,0 | 9,0 | 179 | 4,8 | -2.0 | DP..070204 | MS1153 | T7 |
| 5093634 | E16RSDUPR07 | 16 | 20,0 | 11,0 | 199 | 5,5 | 0.0 | DP..070204 | MS1153 | T7 |
| 5093639 | E20SSDUPR11 | 20 | 25,0 | 13,0 | 253 | 7,1 | -2.0 | DP..11T308 | MS1155 | T15 |
| left hand | ||||||||||
| 5093429 | E12QSDUPL07 | 12 | 16,0 | 9,0 | 179 | 4,8 | -2.0 | DP..070204 | MS1153 | T7 |
| 5093633 | E16RSDUPL07 | 16 | 20,0 | 11,0 | 199 | 5,5 | 0.0 | DP..070204 | MS1153 | T7 |
| 5093638 | E20SSDUPL11 | 20 | 25,0 | 13,0 | 253 | 7,1 | -2.0 | DP..11T308 | MS1155 | T15 |
