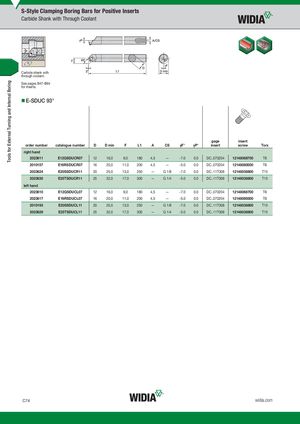

Carbide shank with through coolant. See pages B47–B64 for inserts.
E-SDUC 93°
| order number | catalogue number | D | D min | F | L1 | A | CS | �F° | �P° | gage insert | insert screw | Torx |
| right hand | ||||||||||||
| 2023611 | E12QSDUCR07 | 12 | 16,0 | 9,0 | 180 | 4,5 | — | -7.0 | 0.0 | DC..070204 | 12148068700 | T8 |
| 2010157 | E16RSDUCR07 | 16 | 20,0 | 11,0 | 200 | 4,5 | — | -5.0 | 0.0 | DC..070204 | 12148080000 | T8 |
| 2023624 | E20SSDUCR11 | 20 | 25,0 | 13,0 | 250 | — | G 1/8 | -7.0 | 0.0 | DC..11T308 | 12148038800 | T15 |
| 2023630 | E25TSDUCR11 | 25 | 32,0 | 17,0 | 300 | — | G 1/4 | -5.0 | 0.0 | DC..11T308 | 12148038800 | T15 |
| left hand | ||||||||||||
| 2023610 | E12QSDUCL07 | 12 | 16,0 | 9,0 | 180 | 4,5 | — | -7.0 | 0.0 | DC..070204 | 12148068700 | T8 |
| 2023617 | E16RSDUCL07 | 16 | 20,0 | 11,0 | 200 | 4,5 | — | -5.0 | 0.0 | DC..070204 | 12148080000 | T8 |
| 2010193 | E20SSDUCL11 | 20 | 25,0 | 13,0 | 250 | — | G 1/8 | -7.0 | 0.0 | DC..11T308 | 12148038800 | T15 |
| 2023629 | E25TSDUCL11 | 25 | 32,0 | 17,0 | 300 | — | G 1/4 | -5.0 | 0.0 | DC..11T308 | 12148038800 | T15 |
