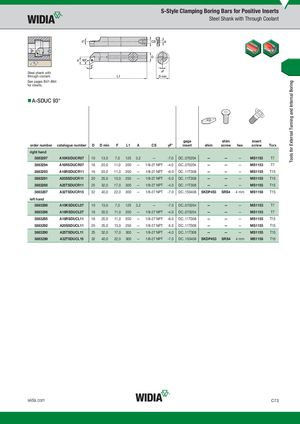

Steel shank with through coolant. See pages B47–B64 for inserts.
A-SDUC 93°
| order number | catalogue number | D | D min | F | L1 | A | CS | �F° | gage insert | shim | shim screw | hex | insert screw | Torx |
| right hand | ||||||||||||||
| 3883297 | A10KSDUCR07 | 10 | 13,0 | 7,0 | 125 | 3,2 | — | -7.0 | DC..070204 | — | — | — | MS1153 | T7 |
| 3883294 | A16RSDUCR07 | 16 | 20,0 | 11,0 | 200 | — | 1/8-27 NPT | -4.0 | DC..070204 | — | — | — | MS1153 | T7 |
| 3883293 | A16RSDUCR11 | 16 | 20,0 | 11,0 | 200 | — | 1/8-27 NPT | -6.0 | DC..11T308 | — | — | — | MS1155 | T15 |
| 3883291 | A20SSDUCR11 | 20 | 25,0 | 13,0 | 250 | — | 1/8-27 NPT | -5.0 | DC..11T308 | — | — | — | MS1155 | T15 |
| 3883288 | A25TSDUCR11 | 25 | 32,0 | 17,0 | 300 | — | 1/8-27 NPT | -4.0 | DC..11T308 | — | — | — | MS1155 | T15 |
| 3883287 | A32TSDUCR15 | 32 | 40,0 | 22,0 | 300 | — | 1/8-27 NPT | -7.0 | DC..150408 | SKDP453 | SRS4 | 4 mm | MS1158 | T15 |
| left hand | ||||||||||||||
| 3883298 | A10KSDUCL07 | 10 | 13,0 | 7,0 | 125 | 3,2 | — | -7.0 | DC..070204 | — | — | — | MS1153 | T7 |
| 3883296 | A16RSDUCL07 | 16 | 20,0 | 11,0 | 200 | — | 1/8-27 NPT | -4.0 | DC..070204 | — | — | — | MS1153 | T7 |
| 3883295 | A16RSDUCL11 | 16 | 20,0 | 11,0 | 200 | — | 1/8-27 NPT | -6.0 | DC..11T308 | — | — | — | MS1155 | T15 |
| 3883292 | A20SSDUCL11 | 20 | 25,0 | 13,0 | 250 | — | 1/8-27 NPT | -5.0 | DC..11T308 | — | — | — | MS1155 | T15 |
| 3883290 | A25TSDUCL11 | 25 | 32,0 | 17,0 | 300 | — | 1/8-27 NPT | -4.0 | DC..11T308 | — | — | — | MS1155 | T15 |
| 3883289 | A32TSDUCL15 | 32 | 40,0 | 22,0 | 300 | — | 1/8-27 NPT | -7.0 | DC..150408 | SKDP453 | SRS4 | 4 mm | MS1158 | T15 |
