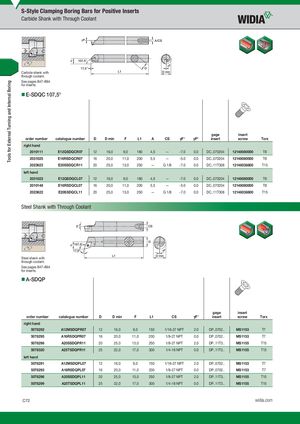

Общий каталог Widia 2017 - страница 312
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
Carbide shank with through coolant. See pages B47–B64 for inserts.
- E-SDQC 107,5°
| order number | catalogue number | D | D min | F | L1 | A | CS | �F° | �P° | gage insert | insert screw | Torx |
| right hand | ||||||||||||
| 2010111 | E12QSDQCR07 | 12 | 16,0 | 9,0 | 180 | 4,5 | — | -7.0 | 0.0 | DC..070204 | 12148080000 | T8 |
| 2031025 | E16RSDQCR07 | 16 | 20,0 | 11,0 | 200 | 5,5 | — | -5.0 | 0.0 | DC..070204 | 12148080000 | T8 |
| 2023623 | E20SSDQCR11 | 20 | 25,0 | 13,0 | 250 | — | G 1/8 | -7.0 | 0.0 | DC..11T308 | 12148038800 | T15 |
| left hand | ||||||||||||
| 2031023 | E12QSDQCL07 | 12 | 16,0 | 9,0 | 180 | 4,5 | — | -7.0 | 0.0 | DC..070204 | 12148080000 | T8 |
| 2010148 | E16RSDQCL07 | 16 | 20,0 | 11,0 | 200 | 5,5 | — | -5.0 | 0.0 | DC..070204 | 12148080000 | T8 |
| 2023622 | E20SSDQCL11 | 20 | 25,0 | 13,0 | 250 | — | G 1/8 | -7.0 | 0.0 | DC..11T308 | 12148038800 | T15 |
Steel Shank with Through Coolant
Steel shank with through coolant. See pages B47–B64 for inserts.
- A-SDQP
gage insert
order number catalogue number D D min F L1 CS aF° insert screw Torx
right hand
| order number | catalogue number | D | D min | F | L1 | CS | �F° | gage insert | insert screw | Torx |
| right hand | ||||||||||
| 5078292 | A12MSDQPR07 | 12 | 16,0 | 9,0 | 150 | 1/16-27 NPT | 2.0 | DP..0702.. | MS1153 | T7 |
| 5078295 | A16RSDQPR07 | 16 | 20,0 | 11,0 | 200 | 1/8-27 NPT | 0.0 | DP..0702.. | MS1153 | T7 |
| 5078298 | A20SSDQPR11 | 20 | 25,0 | 13,0 | 250 | 1/8-27 NPT | 2.0 | DP..11T3.. | MS1155 | T15 |
| 5078320 | A25TSDQPR11 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | 0.0 | DP..11T3.. | MS1155 | T15 |
| left hand | ||||||||||
| 5078291 | A12MSDQPL07 | 12 | 16,0 | 9,0 | 150 | 1/16-27 NPT | 2.0 | DP..0702.. | MS1153 | T7 |
| 5078293 | A16RSDQPL07 | 16 | 20,0 | 11,0 | 200 | 1/8-27 NPT | 0.0 | DP..0702.. | MS1153 | T7 |
| 5078296 | A20SSDQPL11 | 20 | 25,0 | 13,0 | 250 | 1/8-27 NPT | 2.0 | DP..11T3.. | MS1155 | T15 |
| 5078299 | A25TSDQPL11 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | 0.0 | DP..11T3.. | MS1155 | T15 |
