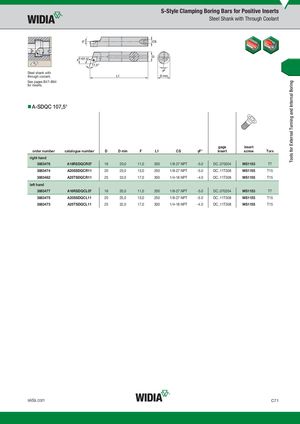

Steel shank with through coolant. See pages B47–B64 for inserts.
A-SDQC 107,5°
| order number | catalogue number | D | D min | F | L1 | CS | �F° | gage insert | insert screw | Torx |
| right hand | ||||||||||
| 3883476 | A16RSDQCR07 | 16 | 20,0 | 11,0 | 200 | 1/8-27 NPT | -5.0 | DC..070204 | MS1153 | T7 |
| 3883474 | A20SSDQCR11 | 20 | 25,0 | 13,0 | 250 | 1/8-27 NPT | -5.0 | DC..11T308 | MS1155 | T15 |
| 3883462 | A25TSDQCR11 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | -4.0 | DC..11T308 | MS1155 | T15 |
| left hand | ||||||||||
| 3883477 | A16RSDQCL07 | 16 | 20,0 | 11,0 | 200 | 1/8-27 NPT | -5.0 | DC..070204 | MS1153 | T7 |
| 3883475 | A20SSDQCL11 | 20 | 25,0 | 13,0 | 250 | 1/8-27 NPT | -5.0 | DC..11T308 | MS1155 | T15 |
| 3883473 | A25TSDQCL11 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | -4.0 | DC..11T308 | MS1155 | T15 |
