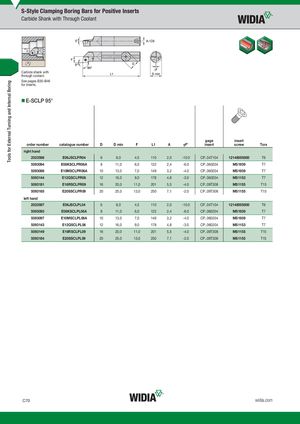

Carbide shank with through coolant. See pages B30–B46 for inserts.
E-SCLP 95°
| order number | catalogue number | D | D min | F | L1 | A | �F° | gage insert | insert screw | Torx |
| right hand | ||||||||||
| 2023598 | E06JSCLPR04 | 6 | 8,0 | 4,5 | 110 | 2,0 | -10.0 | CP..04T104 | 12148005800 | T6 |
| 5093094 | E08KSCLPR06A | 8 | 11,0 | 6,0 | 122 | 2,4 | -6.0 | CP..060204 | MS1939 | T7 |
| 5093098 | E10MSCLPR06A | 10 | 13,0 | 7,0 | 149 | 3,2 | -4.0 | CP..060204 | MS1939 | T7 |
| 5093144 | E12QSCLPR06 | 12 | 16,0 | 9,0 | 178 | 4,8 | -3.0 | CP..060204 | MS1153 | T7 |
| 5093181 | E16RSCLPR09 | 16 | 20,0 | 11,0 | 201 | 5,5 | -4.0 | CP..09T308 | MS1155 | T15 |
| 5093185 | E20SSCLPR09 | 20 | 25,0 | 13,0 | 250 | 7,1 | -2.0 | CP..09T308 | MS1155 | T15 |
| left hand | ||||||||||
| 2023597 | E06JSCLPL04 | 6 | 8,0 | 4,5 | 110 | 2,0 | -10.0 | CP..04T104 | 12148005800 | T6 |
| 5093093 | E08KSCLPL06A | 8 | 11,0 | 6,0 | 122 | 2,4 | -6.0 | CP..060204 | MS1939 | T7 |
| 5093097 | E10MSCLPL06A | 10 | 13,0 | 7,0 | 149 | 3,2 | -4.0 | CP..060204 | MS1939 | T7 |
| 5093143 | E12QSCLPL06 | 12 | 16,0 | 9,0 | 178 | 4,8 | -3.0 | CP..060204 | MS1153 | T7 |
| 5093149 | E16RSCLPL09 | 16 | 20,0 | 11,0 | 201 | 5,5 | -4.0 | CP..09T308 | MS1155 | T15 |
| 5093184 | E20SSCLPL09 | 20 | 25,0 | 13,0 | 250 | 7,1 | -2.0 | CP..09T308 | MS1155 | T15 |
