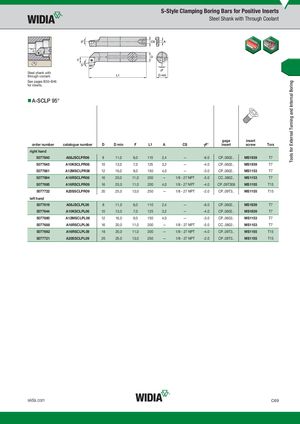

Steel shank with through coolant. See pages B30–B46 for inserts.
A-SCLP 95°
| order number | catalogue number | D | D min | F | L1 | A | CS | �F° | gage insert | insert screw | Torx |
| right hand | |||||||||||
| 5077640 | A08JSCLPR06 | 8 | 11,0 | 6,0 | 110 | 2,4 | — | -6.0 | CP..0602.. | MS1939 | T7 |
| 5077645 | A10KSCLPR06 | 10 | 13,0 | 7,0 | 125 | 3,2 | — | -4.0 | CP..0602.. | MS1939 | T7 |
| 5077681 | A12MSCLPR06 | 12 | 16,0 | 9,0 | 150 | 4,0 | — | -3.0 | CP..0602.. | MS1153 | T7 |
| 5077694 | A16RSCLPR06 | 16 | 20,0 | 11,0 | 200 | — | 1/8 - 27 NPT | -5.0 | CC..0602.. | MS1153 | T7 |
| 5077695 | A16RSCLPR09 | 16 | 20,0 | 11,0 | 200 | 4,0 | 1/8 - 27 NPT | -4.0 | CP..09T308 | MS1155 | T15 |
| 5077722 | A20SSCLPR09 | 20 | 25,0 | 13,0 | 250 | — | 1/8 - 27 NPT | -2.0 | CP..09T3.. | MS1155 | T15 |
| left hand | |||||||||||
| 5077619 | A08JSCLPL06 | 8 | 11,0 | 6,0 | 110 | 2,4 | — | -6.0 | CP..0602.. | MS1939 | T7 |
| 5077644 | A10KSCLPL06 | 10 | 13,0 | 7,0 | 125 | 3,2 | — | -4.0 | CP..0602.. | MS1939 | T7 |
| 5077680 | A12MSCLPL06 | 12 | 16,0 | 9,0 | 150 | 4,0 | — | -3.0 | CP..0602.. | MS1153 | T7 |
| 5077688 | A16RSCLPL06 | 16 | 20,0 | 11,0 | 200 | — | 1/8 - 27 NPT | -5.0 | CC..0602.. | MS1153 | T7 |
| 5077692 | A16RSCLPL09 | 16 | 20,0 | 11,0 | 200 | — | 1/8 - 27 NPT | -4.0 | CP..09T3.. | MS1155 | T15 |
| 5077721 | A20SSCLPL09 | 20 | 25,0 | 13,0 | 250 | — | 1/8 - 27 NPT | -2.0 | CP..09T3.. | MS1155 | T15 |
