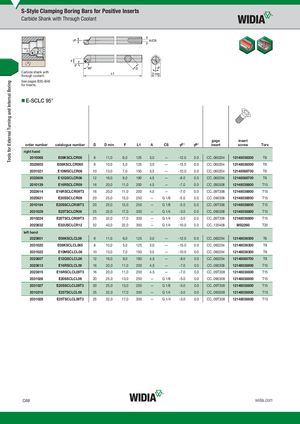

Carbide shank with through coolant. See pages B30–B46 for inserts.
E-SCLC 95°
| order number | catalogue number | D | D min | F | L1 | A | CS | �F° | �P° | gage insert | insert screw | Torx |
| right hand | ||||||||||||
| 2010068 | E08KSCLCR06 | 8 | 11,0 | 6,0 | 125 | 3,0 | — | -12.0 | 0.0 | CC..060204 | 12148036300 | T8 |
| 2023603 | E08KSCLCR065 | 8 | 10,0 | 5,0 | 125 | 3,0 | — | -15.0 | 0.0 | CC..060204 | 12148036300 | T8 |
| 2031021 | E10MSCLCR06 | 10 | 13,0 | 7,0 | 150 | 3,5 | — | -10.0 | 0.0 | CC..060204 | 12148068700 | T8 |
| 2023608 | E12QSCLCR06 | 12 | 16,0 | 9,0 | 180 | 4,5 | — | -8.0 | 0.0 | CC..060204 | 12148068700 | T8 |
| 2010139 | E16RSCLCR09 | 16 | 20,0 | 11,0 | 200 | 4,5 | — | -7.0 | 0.0 | CC..090308 | 12148038800 | T15 |
| 2023614 | E16RSCLCR09T3 | 16 | 20,0 | 11,0 | 200 | 4,5 | — | -7.0 | 0.0 | CC..09T308 | 12148038800 | T15 |
| 2023621 | E20SSCLCR09 | 20 | 25,0 | 13,0 | 250 | — | G 1/8 | -5.0 | 0.0 | CC..090308 | 12148038800 | T15 |
| 2010184 | E20SSCLCR09T3 | 20 | 25,0 | 13,0 | 250 | — | G 1/8 | -5.0 | 0.0 | CC..09T308 | 12148038800 | T15 |
| 2031029 | E25TSCLCR09 | 25 | 32,0 | 17,0 | 300 | — | G 1/4 | -3.0 | 0.0 | CC..090308 | 12148038800 | T15 |
| 2010224 | E25TSCLCR09T3 | 25 | 32,0 | 17,0 | 300 | — | G 1/4 | -3.0 | 0.0 | CC..09T308 | 12148038800 | T15 |
| 2023632 | E32USCLCR12 | 32 | 40,0 | 22,0 | 350 | — | G 1/4 | -10.0 | 0.0 | CC..120408 | MS2260 | T20 |
| left hand | ||||||||||||
| 2023601 | E08KSCLCL06 | 8 | 11,0 | 6,0 | 125 | 3,0 | — | -12.0 | 0.0 | CC..060204 | 12148036300 | T8 |
| 2031020 | E08KSCLCL065 | 8 | 10,0 | 5,0 | 125 | 3,0 | — | -15.0 | 0.0 | CC..060204 | 12148036300 | T8 |
| 2031022 | E10MSCLCL06 | 10 | 13,0 | 7,0 | 150 | 3,5 | — | -10.0 | 0.0 | CC..060204 | 12148036300 | T8 |
| 2023607 | E12QSCLCL06 | 12 | 16,0 | 9,0 | 180 | 4,5 | — | -8.0 | 0.0 | CC..060204 | 12148068700 | T8 |
| 2023613 | E16RSCLCL09 | 16 | 20,0 | 11,0 | 200 | 4,5 | — | -7.0 | 0.0 | CC..090308 | 12148038800 | T15 |
| 2023615 | E16RSCLCL09T3 | 16 | 20,0 | 11,0 | 200 | 4,5 | — | -7.0 | 0.0 | CC..09T308 | 12148038800 | T15 |
| 2031026 | E20SSCLCL09 | 20 | 25,0 | 13,0 | 250 | — | G 1/8 | -5.0 | 0.0 | CC..090308 | 12148038800 | T15 |
| 2031027 | E20SSCLCL09T3 | 20 | 25,0 | 13,0 | 250 | — | G 1/8 | -5.0 | 0.0 | CC..09T308 | 12148038800 | T15 |
| 2010215 | E25TSCLCL09 | 25 | 32,0 | 17,0 | 300 | — | G 1/4 | -3.0 | 0.0 | CC..090308 | 12148038800 | T15 |
| 2031028 | E25TSCLCL09T3 | 25 | 32,0 | 17,0 | 300 | — | G 1/4 | -3.0 | 0.0 | CC..09T308 | 12148038800 | T15 |
