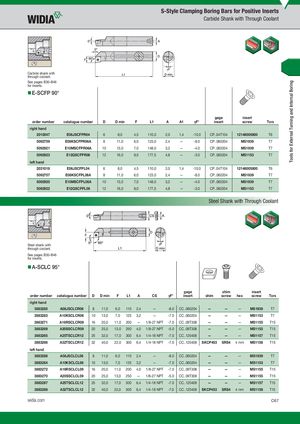

Carbide shank with through coolant. See pages B30–B46 for inserts.
- E-SCFP 90°
| order number | catalogue number | D | D min | F | L1 | A | A1 | �F° | gage insert | insert screw | Torx |
| right hand | |||||||||||
| 2010047 | E06JSCFPR04 | 6 | 8,0 | 4,5 | 110,0 | 2,0 | 1,4 | -10.0 | CP..04T104 | 12148005800 | T6 |
| 5092759 | E08KSCFPR06A | 8 | 11,0 | 6,0 | 123,0 | 2,4 | — | -8.0 | CP..060204 | MS1939 | T7 |
| 5092921 | E10MSCFPR06A | 10 | 13,0 | 7,0 | 148,0 | 3,2 | — | -4.0 | CP..060204 | MS1939 | T7 |
| 5092923 | E12QSCFPR06 | 12 | 16,0 | 9,0 | 177,5 | 4,8 | — | -3.0 | CP..060204 | MS1153 | T7 |
| left hand | |||||||||||
| 2031018 | E06JSCFPL04 | 6 | 8,0 | 4,5 | 110,0 | 2,0 | 1,4 | -10.0 | CP..04T104 | 12148005800 | T6 |
| 5092757 | E08KSCFPL06A | 8 | 11,0 | 6,0 | 123,0 | 2,4 | — | -8.0 | CP..060204 | MS1939 | T7 |
| 5092920 | E10MSCFPL06A | 10 | 13,0 | 7,0 | 148,0 | 3,2 | — | -4.0 | CP..060204 | MS1939 | T7 |
| 5092922 | E12QSCFPL06 | 12 | 16,0 | 9,0 | 177,5 | 4,8 | — | -3.0 | CP..060204 | MS1153 | T7 |
Steel Shank with Through Coolant
Steel shank with through coolant. See pages B30–B46 for inserts.
- A-SCLC 95°
gage shim insert
order number catalogue number D D min F L1 A CS aF° insert shim screw hex screw Torx
right hand
| order number | catalogue number | D | D min | F | L1 | A | CS | �F° | gage insert | shim | shim screw | hex | insert screw | Torx |
| right hand | ||||||||||||||
| 3883285 | A08JSCLCR06 | 8 | 11,0 | 6,0 | 110 | 2,4 | — | -8.0 | CC..060204 | — | — | — | MS1939 | T7 |
| 3883283 | A10KSCLCR06 | 10 | 13,0 | 7,0 | 125 | 3,2 | — | -7.0 | CC..060204 | — | — | — | MS1153 | T7 |
| 3883271 | A16RSCLCR09 | 16 | 20,0 | 11,0 | 200 | — | 1/8-27 NPT | -7.0 | CC..09T308 | — | — | — | MS1155 | T15 |
| 3883269 | A20SSCLCR09 | 20 | 25,0 | 13,0 | 250 | 4,0 | 1/8-27 NPT | -5.0 | CC..09T308 | — | — | — | MS1155 | T15 |
| 3883265 | A25TSCLCR12 | 25 | 32,0 | 17,0 | 300 | 6,4 | 1/4-18 NPT | -7.0 | CC..120408 | — | — | — | MS1157 | T15 |
| 3883266 | A32TSCLCR12 | 32 | 40,0 | 22,0 | 300 | 6,4 | 1/4-18 NPT | -7.0 | CC..120408 | SKCP453 | SRS4 | 4 mm | MS1158 | T15 |
| left hand | ||||||||||||||
| 3883286 | A08JSCLCL06 | 8 | 11,0 | 6,0 | 110 | 2,4 | — | -8.0 | CC..060204 | — | — | — | MS1939 | T7 |
| 3883284 | A10KSCLCL06 | 10 | 13,0 | 7,0 | 125 | 3,2 | — | -7.0 | CC..060204 | — | — | — | MS1153 | T7 |
| 3883272 | A16RSCLCL09 | 16 | 20,0 | 11,0 | 200 | 4,0 | 1/8-27 NPT | -7.0 | CC..09T308 | — | — | — | MS1155 | T15 |
| 3883270 | A20SSCLCL09 | 20 | 25,0 | 13,0 | 250 | — | 1/8-27 NPT | -5.0 | CC..09T308 | — | — | — | MS1155 | T15 |
| 3883267 | A25TSCLCL12 | 25 | 32,0 | 17,0 | 300 | 6,4 | 1/4-18 NPT | -7.0 | CC..120408 | — | — | — | MS1157 | T15 |
| 3883268 | A32TSCLCL12 | 32 | 40,0 | 22,0 | 300 | 6,4 | 1/4-18 NPT | -7.0 | CC..120408 | SKCP453 | SRS4 | 4 mm | MS1158 | T15 |
